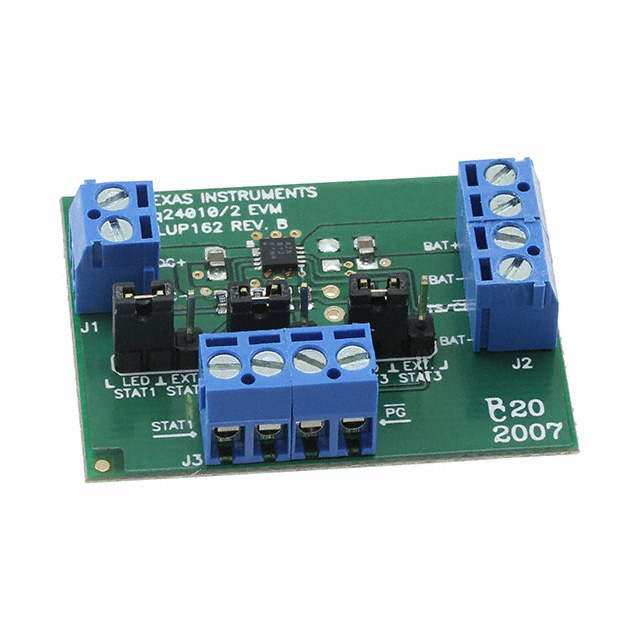

BQ24010EVM
ActiveEVAL MOD FOR BQ24010
Deep-Dive with AI
Search across all available documentation for this part.
BQ24010EVM
ActiveEVAL MOD FOR BQ24010
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24010EVM | BQ24010 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 1 A |
| Current - Charging | - | Constant - Programmable |
| Fault Protection | - | Short Circuit |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 125 ¯C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-VFDFN Exposed Pad |
| Programmable Features | - | Current, Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-VSON (3x3) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24010 | BQ24010 |
| Voltage - Supply (Max) | - | 16.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 58.80 | |
| Digikey | Bulk | 1 | $ 58.80 | |
| Mouser Electronics | N/A | 1 | $ 58.81 | |
BQ24010 Series
1-cell, 1-A, linear Li-ion battery charger with AC present and temp sense in QFN-11 package
| Part | Voltage - Supply (Max) [Max] | Supplier Device Package | Battery Pack Voltage | Battery Chemistry | Charge Current - Max [Max] | Number of Cells | Package / Case | Current - Charging | Fault Protection | Programmable Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Supplied Contents | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24010DRCR | 16.5 V | 10-VSON (3x3) | 4.2 V | Lithium Ion/Polymer | 1 A | 1 | 10-VFDFN Exposed Pad | Constant - Programmable | Short Circuit | Current, Timer | Surface Mount | 125 ¯C | -40 °C | ||||
Texas Instruments BQ24010EVM | Power Management | Board(s) | BQ24010 | Battery Charger | |||||||||||||
Texas Instruments BQ24010DRCRG4 | 16.5 V | 10-VSON (3x3) | 4.2 V | Lithium Ion/Polymer | 1 A | 1 | 10-VFDFN Exposed Pad | Constant - Programmable | Short Circuit | Current, Timer | Surface Mount | 125 ¯C | -40 °C |
Description
General part information
BQ24010 Series
The bqTINY™ series are highly integrated Li-Ion and Li-Pol linear charge management devices targeted at space limited portable applications. The bqTINY™ series offer integrated powerFET and current sensor, reverse blocking protection, high accuracy current and voltage regulation, charge status, and charge termination, in a small package.
The bqTINY™ charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on minimum current. An internal charge timer provides a backup safety feature for charge termination. The bqTINY™ automatically restarts the charge if the battery voltage falls below an internal threshold. The bqTINY™ automatically enters sleep mode when VCCsupply is removed.
In addition to the standard features, different versions of the bqTINY™ offer a multitude of additional features. These include temperature sensing input for detecting hot or cold battery packs; power good (PG) output indicating the presence of valid input power; a TTL-level charge-enable input (CE) used to disable or enable the charge process; and a TTL-level timer and termination enable (TTE) input used to disable or enable the fast-charge timer and charge termination.
