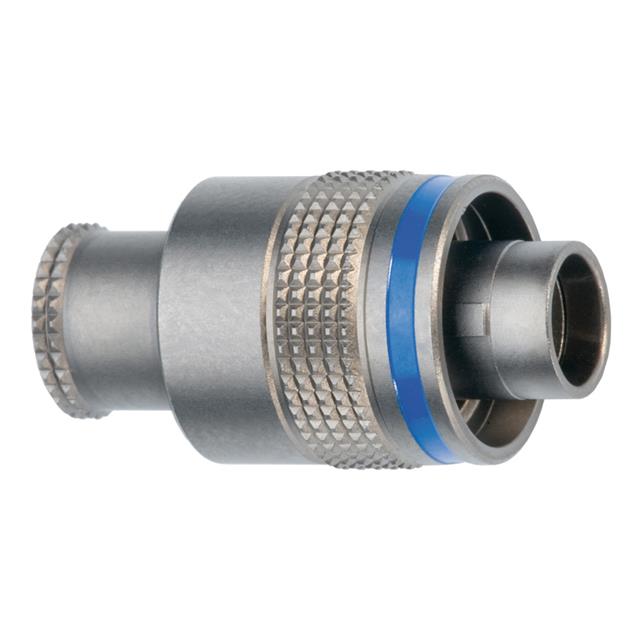

FMN.2M.514.XLCT6

Active

LEMO

CABLE MOUNT PLUG CAT6A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M Series Catalog

FMN.2M.514.XLCT6

Active

LEMO

CABLE MOUNT PLUG CAT6A

Deep-Dive with AI

DocumentsDatasheet M Series Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FMN.2M Series

14 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

M Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMN.2M.514.XLCT6	FMN.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening	-	0.512 in
Cable Opening	-	13 mm
Cable Opening	-	13 mm
Cable Opening	-	6.5 mm
Cable Opening	-	0.512 in
Cable Opening	-	0.256 in
Color	Gray	Gray, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Material	-	Brass
Current Rating (Amps)	-	4 - 10 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	14	8 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-20 C	-55 - -20 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum	Aluminum Alloy, Aluminum
Shell Size - Insert	514	308 - 514
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FMN.2M Series

CONN PLUG MALE 10POS GOLD CRIMP

Part	Connector Type	Current Rating (Amps)	Number of Positions	Applications	Shielding	Contact Finish - Mating	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Orientation	Shell Finish	Insert Material	Primary Material	Features	Termination	Contact Material	Mounting Type	Color	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO FMN.2M.310.XLCT	Male Pins, Plug	8 A	10	Aerospace, Automotive, Aviation, Military	Shielded	Gold	310	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.514.XLCT6	Male Pins, Plug		14	Aerospace, Automotive, Aviation, Military	Shielded	Gold	514			N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp		Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof			-20 C	200 °C	Aluminum
LEMO FMN.2M.319.XLC	Male Pins, Plug	4 A	19		Shielded	Gold	319			N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Silver	IP68 - Dust Tight, Waterproof			-20 C	200 °C	Aluminum	13 mm	6.5 mm	0.512 in	0.256 in
LEMO FMN.2M.319.XLCT	Male Pins, Plug	4 A	19	Aerospace, Automotive, Aviation, Military	Shielded	Gold	319	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.308.XLCT	Male Pins, Plug	10 A	8	Aerospace, Automotive, Aviation, Military	Shielded	Gold	308	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.312.XLCT	Male Pins, Plug	7 A	12	Aerospace, Automotive, Aviation, Military	Shielded	Gold	312	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
