FMN.2M.319.XLCT

Active

LEMO

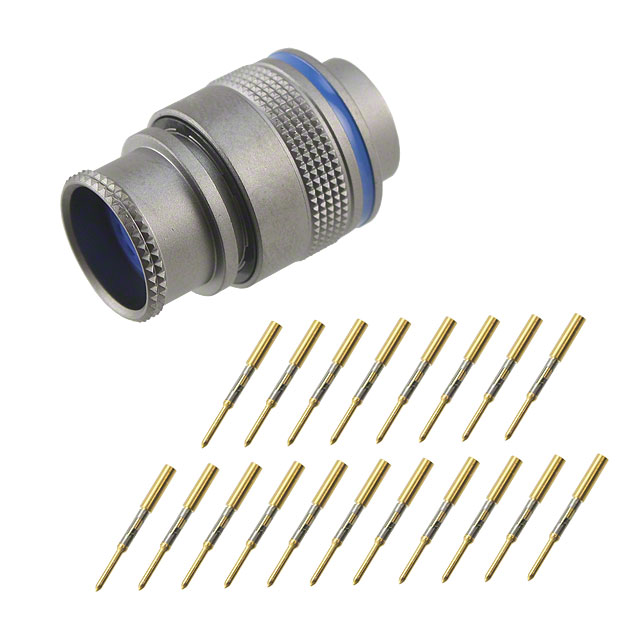

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM Series Catalog Datasheet

FMN.2M.319.XLCT

Active

LEMO

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

DocumentsM Series Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 112.17
		10	$ 102.93
		25	$ 98.97
		50	$ 95.68
		100	$ 90.40

Description

General part information

FMN.2M Series

19 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

M Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMN.2M.319.XLCT	FMN.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening	-	13 mm
Cable Opening	-	6.5 mm
Cable Opening	-	0.512 in
Cable Opening	-	0.256 in
Cable Opening [custom]	0.512 in	0.512 in
Cable Opening [custom]	13 mm	13 mm
Color	Gray	Gray, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	4 A	4 - 10 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	19	8 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 - -20 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy, Aluminum
Shell Size - Insert	319	308 - 514
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FMN.2M Series

CONN PLUG MALE 10POS GOLD CRIMP

Part	Connector Type	Current Rating (Amps)	Number of Positions	Applications	Shielding	Contact Finish - Mating	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Orientation	Shell Finish	Insert Material	Primary Material	Features	Termination	Contact Material	Mounting Type	Color	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO FMN.2M.310.XLCT	Male Pins, Plug	8 A	10	Aerospace, Automotive, Aviation, Military	Shielded	Gold	310	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.514.XLCT6	Male Pins, Plug		14	Aerospace, Automotive, Aviation, Military	Shielded	Gold	514			N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp		Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof			-20 C	200 °C	Aluminum
LEMO FMN.2M.319.XLC	Male Pins, Plug	4 A	19		Shielded	Gold	319			N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Silver	IP68 - Dust Tight, Waterproof			-20 C	200 °C	Aluminum	13 mm	6.5 mm	0.512 in	0.256 in
LEMO FMN.2M.319.XLCT	Male Pins, Plug	4 A	19	Aerospace, Automotive, Aviation, Military	Shielded	Gold	319	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.308.XLCT	Male Pins, Plug	10 A	8	Aerospace, Automotive, Aviation, Military	Shielded	Gold	308	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
LEMO FMN.2M.312.XLCT	Male Pins, Plug	7 A	12	Aerospace, Automotive, Aviation, Military	Shielded	Gold	312	0.512 in	13 mm	N	Nickel	Polyetheretherketone (PEEK)	Metal	Coupling Nut	Crimp	Brass	Free Hanging (In-Line)	Gray	IP68 - Dust Tight, Waterproof	1 µm	39.4 µin	-55 °C	200 °C	Aluminum Alloy
