HW-01-07-G-S-250-100
ActiveSamtec Inc.
CONN HDR 1POS STACK T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

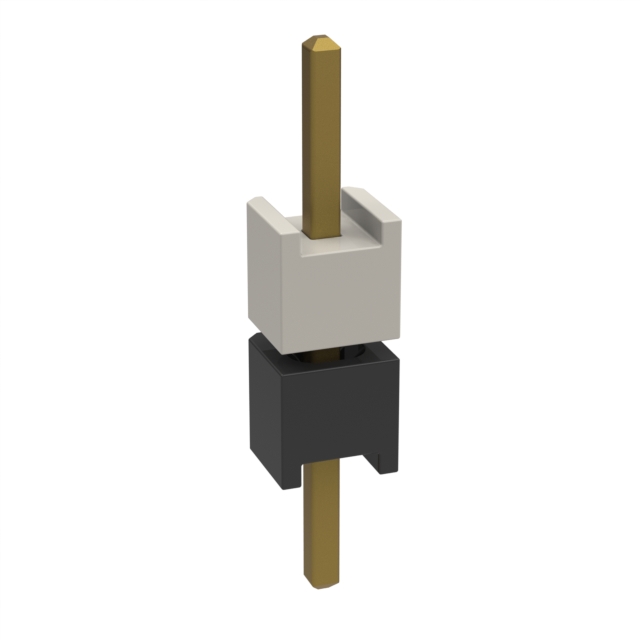

HW-01-07-G-S-250-100
ActiveSamtec Inc.
CONN HDR 1POS STACK T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HW-01-07-G-S-250-100 |
|---|---|
| Color | Black |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 0.25 Ám |
| Contact Finish Thickness - Post (Mating) | 10 Áin |
| Length - Overall Pin [x] | 10.922 mm |
| Length - Overall Pin [x] | 0.43 in |
| Length - Stack Height [x] | 0.25 in |
| Length - Stack Height [x] | 6.35 mm |
| Length - Tail [x] | 0.1 " |
| Length - Tail [x] | 2.54 mm |
| Mounting Type | Through Hole |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Termination | Solder |
HW-01-07 Series
| Part | Termination | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Color | Number of Rows | Contact Finish Thickness - Post (Mating) | Contact Finish Thickness - Post (Mating) | Length - Overall Pin [x] | Length - Overall Pin [x] | Number of Positions | Length - Tail [x] | Length - Tail [x] | Contact Finish - Post (Mating) | Mounting Type | Length - Stack Height [x] | Length - Stack Height [x] | Length - Tail | Length - Tail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Solder | 2.921 mm | 0.115 in | Black | 1 | 0.25 Ám | 10 Áin | 10.922 mm | 0.43 in | 1 | 0.115 in | 2.921 mm | Gold | Through Hole | ||||
Samtec Inc. | Solder | 2.286 mm | 0.09 in | Black | 1 | 10.922 mm | 0.43 in | 1 | 0.09 in | 2.286 mm | Tin | Through Hole | 0.25 in | 6.35 mm | ||||
Samtec Inc. | Solder | 2.87 mm | 0.113 in | Black | 1 | 0.076 Ám | 3 Áin | 10.922 mm | 0.43 in | 1 | Gold | Through Hole | 0.117 " | 2.972 mm | ||||
Samtec Inc. | Solder | 2.667 mm | 0.105 in | Black | 1 | 10.922 mm | 0.43 in | 1 | Tin | Through Hole | 0.25 in | 6.35 mm | 0.075 in | 1.905 mm | ||||
Samtec Inc. | Solder | Black | 1 | 10.922 mm | 0.43 in | 1 | 0.1 " | 2.54 mm | Tin | Through Hole | 0.25 in | 6.35 mm | ||||||
Samtec Inc. | Solder | 4.445 mm | 0.175 in | Black | 1 | 0.25 Ám | 10 Áin | 10.922 mm | 0.43 in | 1 | 0.055 " | Gold | Through Hole | 1.4 mm | ||||
Samtec Inc. | Solder | Black | 1 | 0.25 Ám | 10 Áin | 10.922 mm | 0.43 in | 1 | 0.1 " | 2.54 mm | Gold | Through Hole | 0.25 in | 6.35 mm | ||||
Samtec Inc. | Solder | 3.048 mm | 0.12 in | Black | 1 | 0.076 Ám | 3 Áin | 10.922 mm | 0.43 in | 1 | Gold | Through Hole | 0.11 in | 2.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.25 | |
Description
General part information
HW-01-07 Series
1 Position Header Spacer Connector Gold Through Hole
