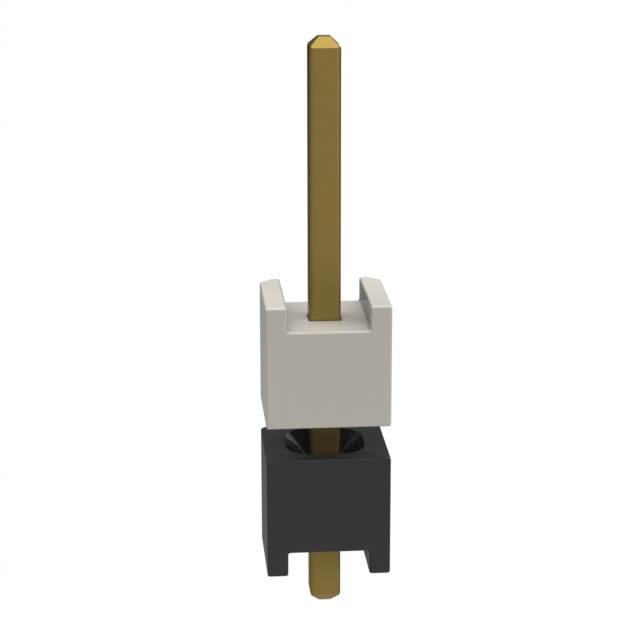

HW-01-07-G-S-200-055

Active

Samtec Inc.

CONN HDR 1POS STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 1POS STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	HW-01-07-G-S-200-055

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	4.445 mm
Length - Post (Mating) [x]	0.175 in
Length - Tail	1.4 mm
Length - Tail [x]	0.055 "
Mounting Type	Through Hole
Number of Positions	1
Number of Rows	1
Termination	Solder

Part	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Number of Rows	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Positions	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail	Length - Tail
Samtec Inc. HW-01-07-G-S-200-115	Solder	2.921 mm	0.115 in	Black	1	0.25 Ám	10 Áin	10.922 mm	0.43 in	1	0.115 in	2.921 mm	Gold	Through Hole
Samtec Inc. HW-01-07-TM-S-250-090	Solder	2.286 mm	0.09 in	Black	1			10.922 mm	0.43 in	1	0.09 in	2.286 mm	Tin	Through Hole	0.25 in	6.35 mm
Samtec Inc. HW-01-07-F-S-200-117	Solder	2.87 mm	0.113 in	Black	1	0.076 Ám	3 Áin	10.922 mm	0.43 in	1			Gold	Through Hole			0.117 "	2.972 mm
Samtec Inc. HW-01-07-T-S-250-075	Solder	2.667 mm	0.105 in	Black	1			10.922 mm	0.43 in	1			Tin	Through Hole	0.25 in	6.35 mm	0.075 in	1.905 mm
Samtec Inc. HW-01-07-T-S-250-100	Solder			Black	1			10.922 mm	0.43 in	1	0.1 "	2.54 mm	Tin	Through Hole	0.25 in	6.35 mm
Samtec Inc. HW-01-07-G-S-200-055	Solder	4.445 mm	0.175 in	Black	1	0.25 Ám	10 Áin	10.922 mm	0.43 in	1	0.055 "		Gold	Through Hole				1.4 mm
Samtec Inc. HW-01-07-G-S-250-100	Solder			Black	1	0.25 Ám	10 Áin	10.922 mm	0.43 in	1	0.1 "	2.54 mm	Gold	Through Hole	0.25 in	6.35 mm
Samtec Inc. HW-01-07-F-S-200-110	Solder	3.048 mm	0.12 in	Black	1	0.076 Ám	3 Áin	10.922 mm	0.43 in	1			Gold	Through Hole			0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.25

General part information

1 Position Header Spacer Connector Gold Through Hole
