CD54HCT154F3A
ActiveHIGH SPEED CMOS LOGIC 4-TO-16 LINE DECODER/DEMULTIPLEXER
Deep-Dive with AI
Search across all available documentation for this part.
CD54HCT154F3A
ActiveHIGH SPEED CMOS LOGIC 4-TO-16 LINE DECODER/DEMULTIPLEXER
Technical Specifications
Parameters and characteristics for this part
| Specification | CD54HCT154F3A |
|---|---|
| Circuit | 1 |
| Circuit [custom] | 4:16 |
| Current - Output High, Low | 4 mA, 4 mA |
| Independent Circuits | 1 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |

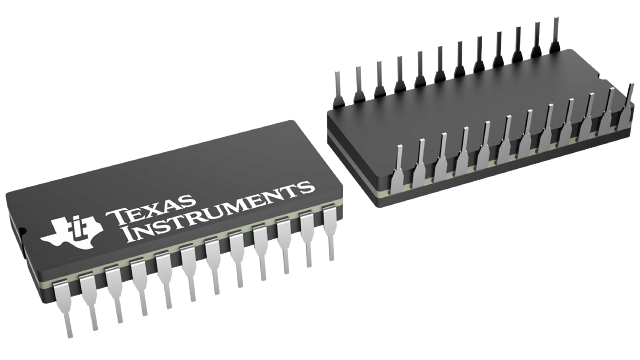

| Package / Case | 24-CDIP |
| Supplier Device Package | 24-CDIP |
| Type | Decoder/Demultiplexer |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CD54HCT154 Series
High Speed CMOS Logic 4-to-16 Line Decoder/Demultiplexer
| Part | Type | Package / Case | Independent Circuits | Voltage - Supply [Max] | Voltage - Supply [Min] | Circuit [custom] | Circuit | Supplier Device Package | Current - Output High, Low | Mounting Type | Voltage Supply Source | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CD54HCT154F3AThe ’HC154 and ’HCT154 are 4-to-16 line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0\ to Y15\, and using one enable as the data input while holding the other enable low.
The ’HC154 and ’HCT154 are 4-to-16 line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0\ to Y15\, and using one enable as the data input while holding the other enable low. | Decoder/Demultiplexer | 24-CDIP | 1 | 5.5 V | 4.5 V | 4:16 | 1 | 24-CDIP | 4 mA, 4 mA | Through Hole | Single Supply | -55 °C | 125 °C |
Description
General part information
CD54HCT154 Series
The ’HC154 and ’HCT154 are 4-to-16 line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0\ to Y15\, and using one enable as the data input while holding the other enable low.
The ’HC154 and ’HCT154 are 4-to-16 line decoders/demultiplexers with two enable inputs, E1 and E2. A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0\ to Y15\, and using one enable as the data input while holding the other enable low.
