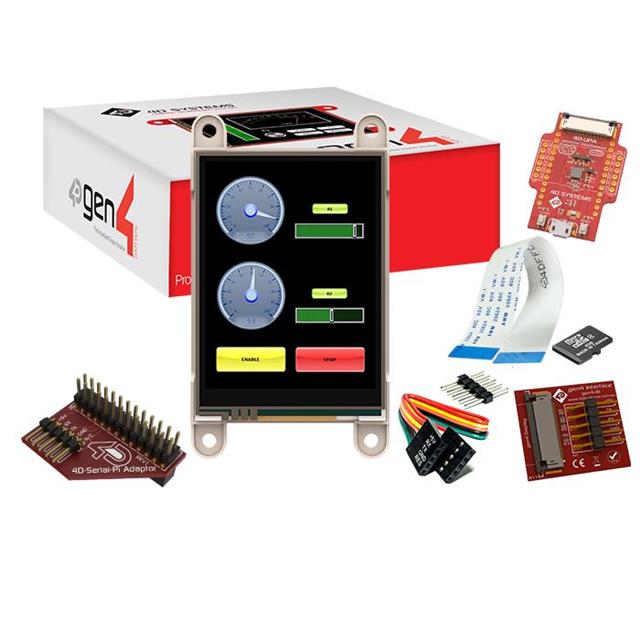

SK-GEN4-24D

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 2.4"

Deep-Dive with AI

Search across all available documentation for this part.

Documents4D-Display click Compatible Part Numbers

SK-GEN4-24D

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 2.4"

Deep-Dive with AI

Documents4D-Display click Compatible Part Numbers

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 59.95
		10	$ 49.50

Description

General part information

SK-GEN4 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, TTL 2.4" (60.96mm) 240 x 320

Documents

Technical documentation and resources

4D-Display click Compatible Part Numbers

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SK-GEN4-24D	SK-GEN4 Series

Backlight	LED - White	LED - White
Controller Type	-	DIABLO16
Diagonal Screen Size	60.96 mm	60.96 - 177.8 mm
Diagonal Screen Size	-	2.8 - 7 in
Diagonal Screen Size	-	127 mm
Diagonal Screen Size [custom]	2.4 in	2.4 - 5 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.15 mm	0.15 - 0.2 mm
Dot Pitch [y]	0.15 mm	0.15 - 0.2 mm
Dot Pixels	-	WVGA
Dot Pixels [x]	240 pixels	240 - 800
Dot Pixels [y]	320	272 - 480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	SPI, I2C, TTL	Parallel/Serial, SPI, I2C, TTL, Parallel
Touchscreen	-	Resistive, Capacitive
Viewing Area	-	43.2 mm
Viewing Area	-	57.6 mm
Viewing Area	-	64.8 - 73.4 mm
Viewing Area [x]	36.7 mm	36.7 - 154 mm
Viewing Area [y]	49 mm	48.6 - 85.92 mm

SK-GEN4 Series

GRAPHIC DISPLAY TFT RGB 4.3"

Part	Viewing Area [y]	Viewing Area [x]	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Interface	Dot Pitch [x]	Dot Pitch [y]	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Display Type	Backlight	Diagonal Screen Size [custom]	Viewing Area [custom]	Viewing Area [custom]	Viewing Area [z]	Touchscreen	Dot Pixels	Diagonal Screen Size [custom]
4D Systems Pty Ltd SK-GEN4-43D-CLB-PI	53.86 mm	95.04 mm	Transmissive	272	480	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White
4D Systems Pty Ltd SK-GEN4-24D	49 mm	36.7 mm	Transmissive	320	240 pixels	I2C, SPI, TTL	0.15 mm	0.15 mm	Blue, Green, Red	60.96 mm		TFT - Color	LED - White	2.4 in
4D Systems Pty Ltd SK-GEN4-43DT-AR	53.86 mm	95.04 mm	Transmissive	272	480	I2C, SPI, TTL	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White
4D Systems Pty Ltd SK-GEN4-28D-AR			Transmissive	320	240 pixels	I2C, SPI, TTL	0.18 mm	0.18 mm	Blue, Green, Red	71.12 mm	2.8 in	TFT - Color	LED - White		43.2 mm	57.6 mm
4D Systems Pty Ltd SK-GEN4-43D-SB-AR	53.86 mm	95.04 mm	Transmissive	272	480	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White
4D Systems Pty Ltd SK-GEN4-32D	48.6 mm		Transmissive	320	240 pixels	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	81.28 mm	3.2 in	TFT - Color	LED - White				64.8 mm
4D Systems Pty Ltd SK-GEN4-35DT	49 mm		Transmissive	320	240 pixels	I2C, SPI, TTL	0.15 mm	0.15 mm	Blue, Green, Red			TFT - Color	LED - White				73.4 mm	Resistive
4D Systems Pty Ltd SK-GEN4-70DCT-CLB-SB-PI	85.92 mm	154 mm	Transmissive	480	800	Parallel/Serial	0.19 mm	0.18 mm	Blue, Green, Red	177.8 mm	7 in	TFT - Color	LED - White					Capacitive	WVGA
4D Systems Pty Ltd SK-GEN4-50D	64.8 mm	108 mm	Transmissive	480	800	I2C, SPI, TTL			Blue, Green, Red			TFT - Color	LED - White	5 in					WVGA	127 mm
4D Systems Pty Ltd SK-GEN4-43DT-SB-PI	53.86 mm	95.04 mm	Transmissive	272	480	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White					Resistive
