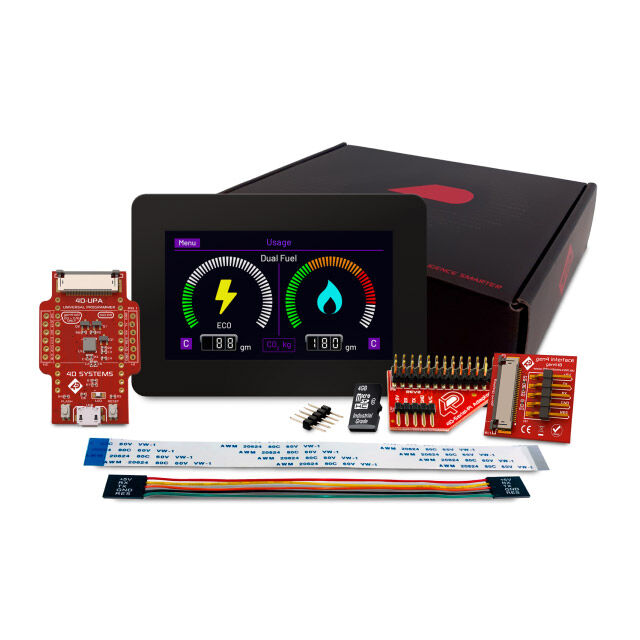

SK-GEN4-43D-CLB-PI

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 4.3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

SK-GEN4-43D-CLB-PI

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 4.3"

Deep-Dive with AI

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SK-GEN4-43D-CLB-PI	SK-GEN4 Series

Backlight	LED - White	LED - White
Controller Type	-	DIABLO16
Diagonal Screen Size	109.22 mm	60.96 - 177.8 mm
Diagonal Screen Size	4.3 in	2.8 - 7 in
Diagonal Screen Size	-	2.4 - 5 in
Diagonal Screen Size	-	127 mm
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.2 mm	0.15 - 0.2 mm
Dot Pitch [y]	0.2 mm	0.15 - 0.2 mm
Dot Pixels	-	WVGA
Dot Pixels [x]	480	240 - 800
Dot Pixels [y]	272	272 - 480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel/Serial	Parallel/Serial, SPI, I2C, TTL, Parallel
Touchscreen	-	Resistive, Capacitive
Viewing Area	-	43.2 mm
Viewing Area	-	57.6 mm
Viewing Area	-	64.8 - 73.4 mm
Viewing Area [x]	95.04 mm	36.7 - 154 mm
Viewing Area [y]	53.86 mm	48.6 - 85.92 mm

SK-GEN4 Series

GRAPHIC DISPLAY TFT RGB 4.3"

Part	Viewing Area [y]	Viewing Area [x]	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Interface	Dot Pitch [x]	Dot Pitch [y]	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Display Type	Backlight	Diagonal Screen Size [custom]	Viewing Area [custom]	Viewing Area [custom]	Viewing Area [z]	Touchscreen	Dot Pixels	Diagonal Screen Size [custom]
4D Systems Pty Ltd SK-GEN4-43D-CLB-PI	53.86 mm	95.04 mm	Transmissive	272	480	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White
4D Systems Pty Ltd SK-GEN4-24D	49 mm	36.7 mm	Transmissive	320	240 pixels	I2C, SPI, TTL	0.15 mm	0.15 mm	Blue, Green, Red	60.96 mm		TFT - Color	LED - White	2.4 in
4D Systems Pty Ltd SK-GEN4-43DT-AR	53.86 mm	95.04 mm	Transmissive	272	480	I2C, SPI, TTL	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White
4D Systems Pty Ltd SK-GEN4-28D-AR			Transmissive	320	240 pixels	I2C, SPI, TTL	0.18 mm	0.18 mm	Blue, Green, Red	71.12 mm	2.8 in	TFT - Color	LED - White		43.2 mm	57.6 mm
4D Systems Pty Ltd SK-GEN4-43D-SB-AR	53.86 mm	95.04 mm	Transmissive	272	480	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White
4D Systems Pty Ltd SK-GEN4-32D	48.6 mm		Transmissive	320	240 pixels	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	81.28 mm	3.2 in	TFT - Color	LED - White				64.8 mm
4D Systems Pty Ltd SK-GEN4-35DT	49 mm		Transmissive	320	240 pixels	I2C, SPI, TTL	0.15 mm	0.15 mm	Blue, Green, Red			TFT - Color	LED - White				73.4 mm	Resistive
4D Systems Pty Ltd SK-GEN4-70DCT-CLB-SB-PI	85.92 mm	154 mm	Transmissive	480	800	Parallel/Serial	0.19 mm	0.18 mm	Blue, Green, Red	177.8 mm	7 in	TFT - Color	LED - White					Capacitive	WVGA
4D Systems Pty Ltd SK-GEN4-50D	64.8 mm	108 mm	Transmissive	480	800	I2C, SPI, TTL			Blue, Green, Red			TFT - Color	LED - White	5 in					WVGA	127 mm
4D Systems Pty Ltd SK-GEN4-43DT-SB-PI	53.86 mm	95.04 mm	Transmissive	272	480	Parallel/Serial	0.2 mm	0.2 mm	Blue, Green, Red	109.22 mm	4.3 in	TFT - Color	LED - White					Resistive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.95

Description

General part information

SK-GEN4 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 4.3" (109.22mm) 480 x 272
