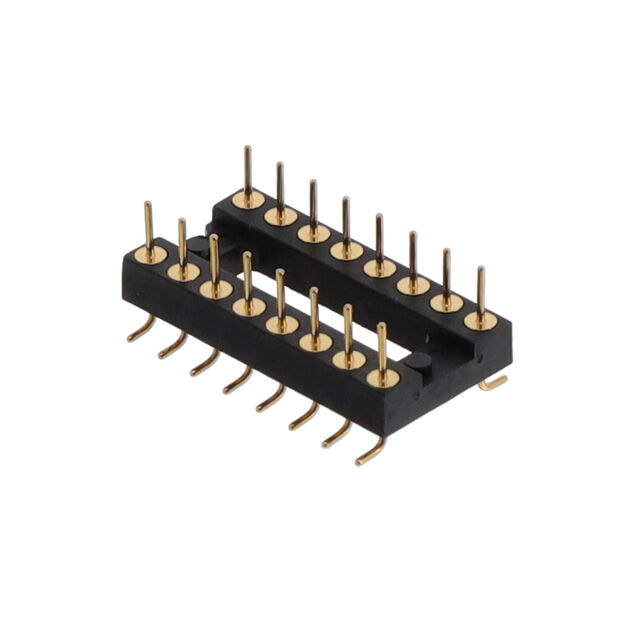

150-10-316-00-106000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 16POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

150-10-316-00-106000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 16POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	150-10-316-00-106000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	0.3 in
Row Spacing	7.62 mm
Termination	Solder

150-10 Series

Part	Pitch [x]	Pitch [x]	Termination	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Mounting Type	Color	Connector Type	Contact Finish	Number of Rows	Number of Positions	Number of Positions
Mill-Max Manufacturing Corp. 150-10-632-00-106000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.6 in	15.24 mm	Surface Mount	Black	DIL - Header DIP	Gold	2
Mill-Max Manufacturing Corp. 150-10-624-00-106000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.6 in	15.24 mm	Surface Mount	Black	DIL - Header DIP	Gold	2	24
Mill-Max Manufacturing Corp. 150-10-628-00-001000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.6 in	15.24 mm	Through Hole	Black	DIL - Header DIP	Gold	2	28
Mill-Max Manufacturing Corp. 150-10-322-00-106000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.3 in	7.62 mm	Surface Mount	Black	DIL - Header DIP	Gold	2	22 positions
Mill-Max Manufacturing Corp. 150-10-432-00-106000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.4 in	10.16 mm	Surface Mount	Black	DIL - Header DIP	Gold	2
Mill-Max Manufacturing Corp. 150-10-328-00-106000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.3 in	7.62 mm	Surface Mount	Black	DIL - Header DIP	Gold	2	28
Mill-Max Manufacturing Corp. 150-10-650-00-106000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.6 in	15.24 mm	Surface Mount	Black	DIL - Header DIP	Gold	2	50
Mill-Max Manufacturing Corp. 150-10-650-00-001000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.6 in	15.24 mm	Through Hole	Black	DIL - Header DIP	Gold	2	50
Mill-Max Manufacturing Corp. 150-10-424-00-001000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.4 in	10.16 mm	Through Hole	Black	DIL - Header DIP	Gold	2	24
Mill-Max Manufacturing Corp. 150-10-316-00-106000	2.54 mm	0.1 in	Solder	10 Áin	0.25 Ám	0.3 in	7.62 mm	Surface Mount	Black	DIL - Header DIP	Gold	2		16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 19.22
		25	$ 16.10
		100	$ 15.06
		500	$ 13.81

Description

General part information

150-10 Series

16 Position DIP, DIL - Header Connector Post Gold

Documents

Technical documentation and resources

No documents available
