150-10-632-00-106000
ActiveMill-Max Manufacturing Corp.

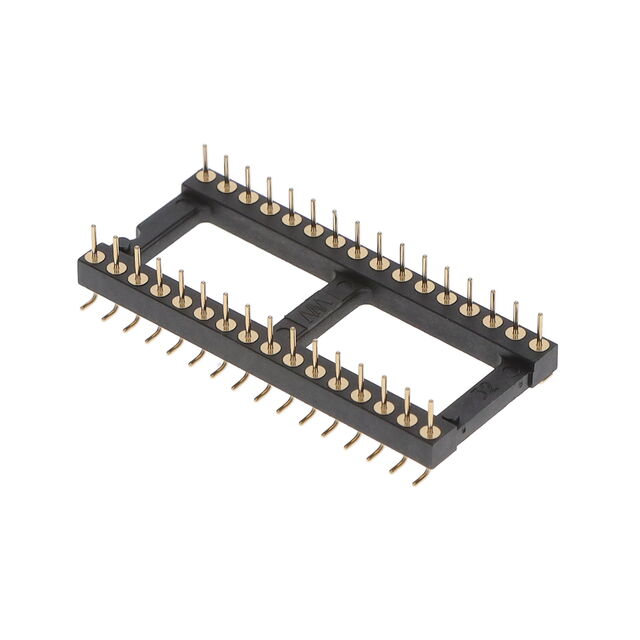

CONN HDR DIP POST 32POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
150-10-632-00-106000
ActiveMill-Max Manufacturing Corp.
CONN HDR DIP POST 32POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 150-10-632-00-106000 |
|---|---|
| Color | Black |
| Connector Type | DIP, DIL - Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Mounting Type | Surface Mount |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 0.6 in |
| Row Spacing | 15.24 mm |
| Termination | Solder |
150-10 Series
| Part | Pitch [x] | Pitch [x] | Termination | Contact Finish Thickness | Contact Finish Thickness | Row Spacing | Row Spacing | Mounting Type | Color | Connector Type | Contact Finish | Number of Rows | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.6 in | 15.24 mm | Surface Mount | Black | DIL - Header DIP | Gold | 2 | ||
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.6 in | 15.24 mm | Surface Mount | Black | DIL - Header DIP | Gold | 2 | 24 | |
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.6 in | 15.24 mm | Through Hole | Black | DIL - Header DIP | Gold | 2 | 28 | |
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.3 in | 7.62 mm | Surface Mount | Black | DIL - Header DIP | Gold | 2 | 22 positions | |
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.4 in | 10.16 mm | Surface Mount | Black | DIL - Header DIP | Gold | 2 | ||
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.3 in | 7.62 mm | Surface Mount | Black | DIL - Header DIP | Gold | 2 | 28 | |
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.6 in | 15.24 mm | Surface Mount | Black | DIL - Header DIP | Gold | 2 | 50 | |
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.6 in | 15.24 mm | Through Hole | Black | DIL - Header DIP | Gold | 2 | 50 | |
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.4 in | 10.16 mm | Through Hole | Black | DIL - Header DIP | Gold | 2 | 24 | |
Mill-Max Manufacturing Corp. | 2.54 mm | 0.1 in | Solder | 10 Áin | 0.25 Ám | 0.3 in | 7.62 mm | Surface Mount | Black | DIL - Header DIP | Gold | 2 | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 25.11 | |
| 12 | $ 21.99 | |||
| 108 | $ 19.68 | |||
| 504 | $ 18.05 | |||
Description
General part information
150-10 Series
32 Position DIP, DIL - Header Connector Post Gold
Documents
Technical documentation and resources
No documents available
