45216-620230
Active3M (TC)

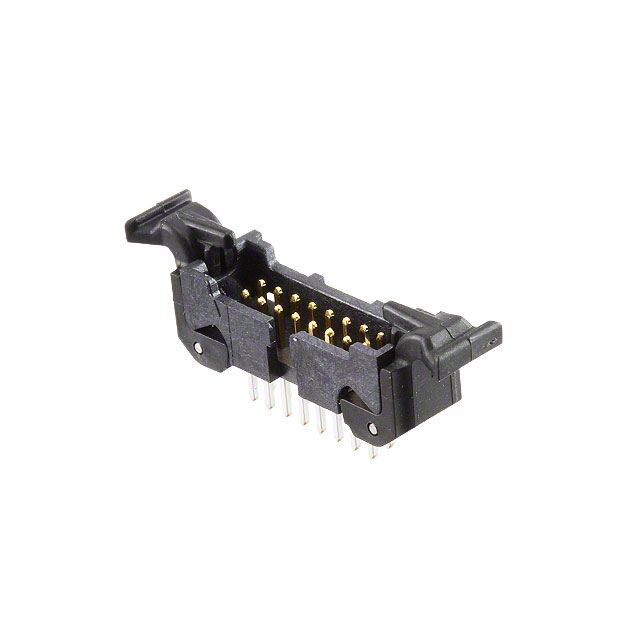

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
45216-620230
Active3M (TC)
PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 45216-620230 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post | 0.094 in |
| Contact Length - Post | 2.4 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot |
| Insulation Height | 5.65 mm |
| Insulation Height | 0.222 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
45216 Series
Connector Header Through Hole 16 position 0.050" (1.27mm)
