45216-220230

Active

3M (TC)

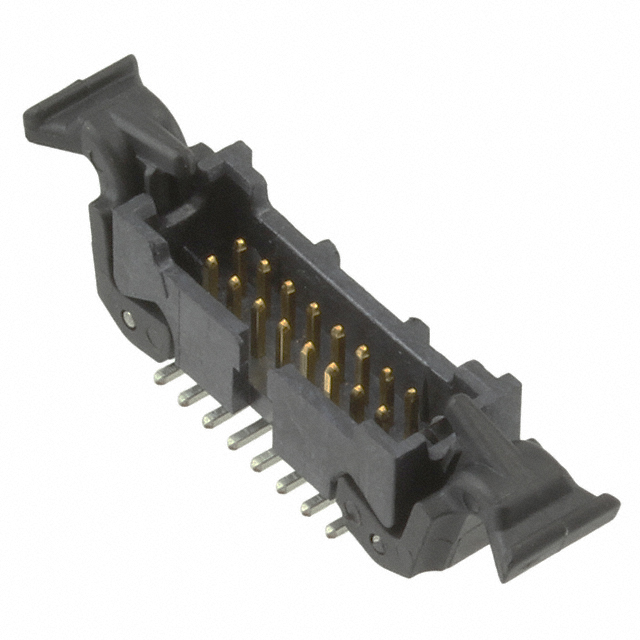

CONN, HEADER, 16POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Series Product Spec Datasheet

45216-220230

Active

3M (TC)

CONN, HEADER, 16POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES

Deep-Dive with AI

Documents451, 452 Series Product Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45216-220230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Pick and Place, Keying Slot
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45216 Series

Part	Insulation Height	Insulation Height	Contact Type	Contact Shape	Connector Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Shrouding	Contact Finish - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Fastening Type	Number of Rows	Contact Finish - Post	Mated Stacking Heights	Contact Material	Contact Finish Thickness - Mating
3M (TC) 45216-620230	5.65 mm	0.222 "	Male Pin	Square	Header	Keying Slot	30 Áin	0.76 Ám	16	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	125 °C	-65 ░C	0.094 in	2.4 mm	Solder	0.05 in	1.27 mm	All	125 VDC	200 µin	5.08 µm	Through Hole	Latch Lock/Eject Hooks Short	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Copper Alloy
3M (TC) 45216-200200	5.65 mm	0.222 "	Male Pin	Square	Header	Keying Slot Pick and Place			16	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	125 °C	-65 ░C			Solder	0.05 in	1.27 mm	All	125 VDC	100 µin	2.54 µm	Surface Mount	Push-Pull	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Copper Alloy	Flash
3M (TC) 45216-220230	5.65 mm	0.222 "	Male Pin	Square	Header	Keying Slot Pick and Place	30 Áin	0.76 Ám	16	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	125 °C	-65 ░C			Solder	0.05 in	1.27 mm	All	125 VDC	200 µin	5.08 µm	Surface Mount	Latch Lock/Eject Hooks Short	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Copper Alloy
3M (TC) 45216-600230	5.65 mm	0.222 "	Male Pin	Square	Header	Keying Slot	30 Áin	0.76 Ám	16	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	125 °C	-65 ░C	0.094 in	2.4 mm	Solder	0.05 in	1.27 mm	All	125 VDC	200 µin	5.08 µm	Through Hole	Push-Pull	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Copper Alloy
3M (TC) 45216-600200	5.65 mm	0.222 "	Male Pin	Square	Header	Keying Slot			16	Shrouded - 4 Wall	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Board to Cable/Wire	125 °C	-65 ░C	0.094 in	2.4 mm	Solder	0.05 in	1.27 mm	All	125 VDC	100 µin	2.54 µm	Through Hole	Push-Pull	2	Tin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Copper Alloy	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.64
		10	$ 9.57
		100	$ 8.56
	Digi-Reel®	1	$ 10.64
		10	$ 9.57
		100	$ 8.56
	Tape & Reel (TR)	500	$ 7.17
		1000	$ 6.34
		1500	$ 6.15
Newark	Each	1	$ 14.57
		10	$ 13.48
		25	$ 12.53
		50	$ 11.73
		100	$ 11.07
		250	$ 10.42

Description

General part information

45216 Series

Connector Header Surface Mount 16 position 0.050" (1.27mm)

Documents

Technical documentation and resources

451, 452 Series Product Spec

Datasheet
