63442-1
ActiveTE Connectivity Raychem Cable Protection

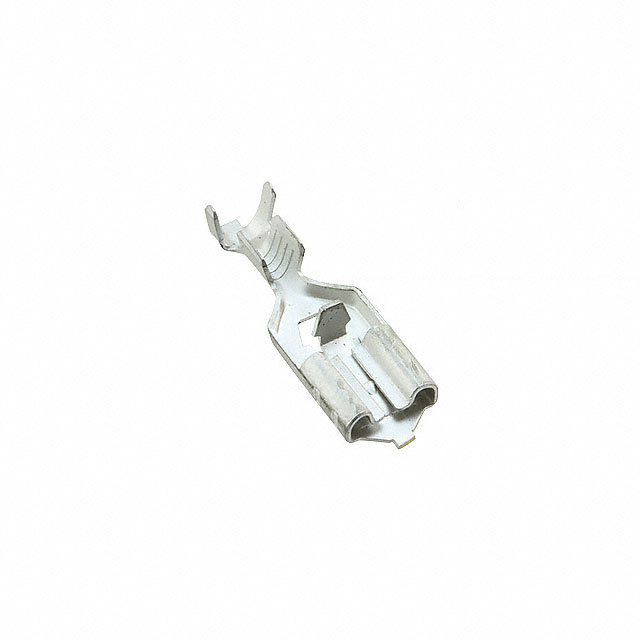

PL 250 TERMINAL REC 18-14 AWG TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 63442-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 3.94 mm |
| Insulation Diameter [Max] [diameter] | 0.155 " |
| Insulation Diameter [Min] [diameter] | 0.09 " |
| Insulation Diameter [Min] [diameter] | 2.29 mm |
| Length - Overall [x] | 0.886 in |
| Length - Overall [x] | 22.5 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Mark II Series
| Part | Stacking Direction | Terminal Type | Terminal Size | Terminal Size | Material | Note | Color | For Use With/Related Products | For Use With/Related Products | For Use With/Related Products | Number of Positions | Mounting Type | Gender | Style | Tab Length | Tab Length | Termination | Contact Material | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Tab Width | Tab Width | Tab Thickness | Tab Thickness | Contact Finish | Length - Overall [x] | Length - Overall [x] | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Insulation Diameter | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Side to Side | Disconnect Quick Connect | 6.35 mm | 0.25 in | Nylon | Contacts Not Included | Blue | 0.25 in | Quick Connects | 6.35 mm | 2 | Free Hanging (In-Line) | Female Receptacle | Housing | |||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | 0.27 in | 6.86 mm | Crimp | Brass | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | 4.75 mm | 0.187 in | 0.02 " | 0.51 mm | Tin | 0.755 in | 19.18 mm | Non-Insulated | 16 AWG | 20 AWG | ||||||||||||||||
TE Connectivity Raychem Cable Protection | Side to Side | Disconnect Quick Connect | 6.35 mm | 0.25 in | Nylon | Contacts Not Included | Yellow | 0.25 in | Quick Connects | 6.35 mm | 2 | Free Hanging (In-Line) | Female Receptacle | Housing | |||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | Crimp | Phosphor Bronze | 0.134 in | 0.075 in | 4.75 mm | 0.187 in | 0.02 " | 0.51 mm | Nickel | 0.85 " | 21.59 mm | Non-Insulated | 16 AWG | 20 AWG | 1.91 mm 3.4 mm | |||||||||||||||||||
TE Connectivity Raychem Cable Protection | Side to Side | Disconnect Quick Connect | 6.35 mm | 0.25 in | Nylon | Contacts Not Included | Black | 0.25 in | Quick Connects | 6.35 mm | 2 | Free Hanging (In-Line) | Female Receptacle | Housing | |||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Multiple | Disconnect Quick Connect | Polyamide (PA) Nylon | Contacts Not Included | Natural | Free Hanging (In-Line) | Female Receptacle | Housing | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Side to Side | Disconnect Quick Connect | 4.75 mm | 0.187 " | Polyamide (PA) Nylon | Contacts Not Included | Natural | 0.187 " | 4.75 mm | Free Hanging (In-Line) | Female Receptacle | Housing | |||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | Female | Crimp | Brass | 6.35 mm | 0.25 in | 0.02 " | 0.51 mm | Tin | 0.886 in | 22.5 mm | Non-Insulated | 14 AWG | 18 AWG | 0.09 " | 2.29 mm | 3.94 mm | 0.155 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 6000 | $ 0.10 | ||
| 12000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
Description
General part information
Mark II Series
Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Positive Lock 250
