520935-6

Obsolete

TE Connectivity Raychem Cable Protection

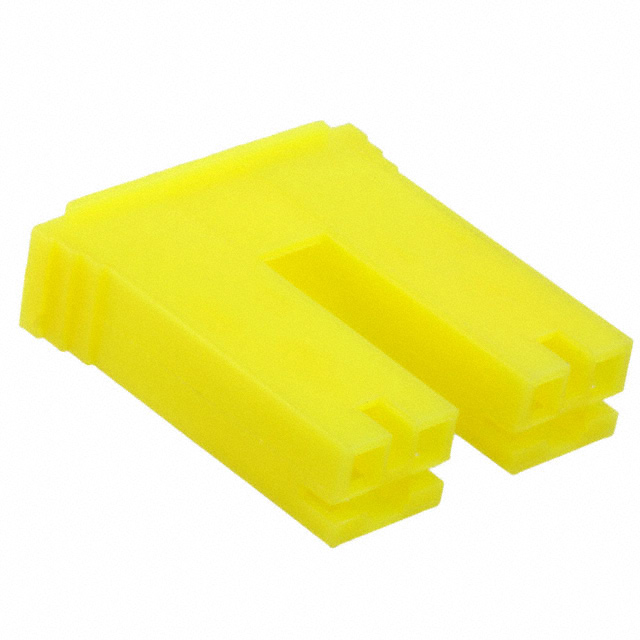

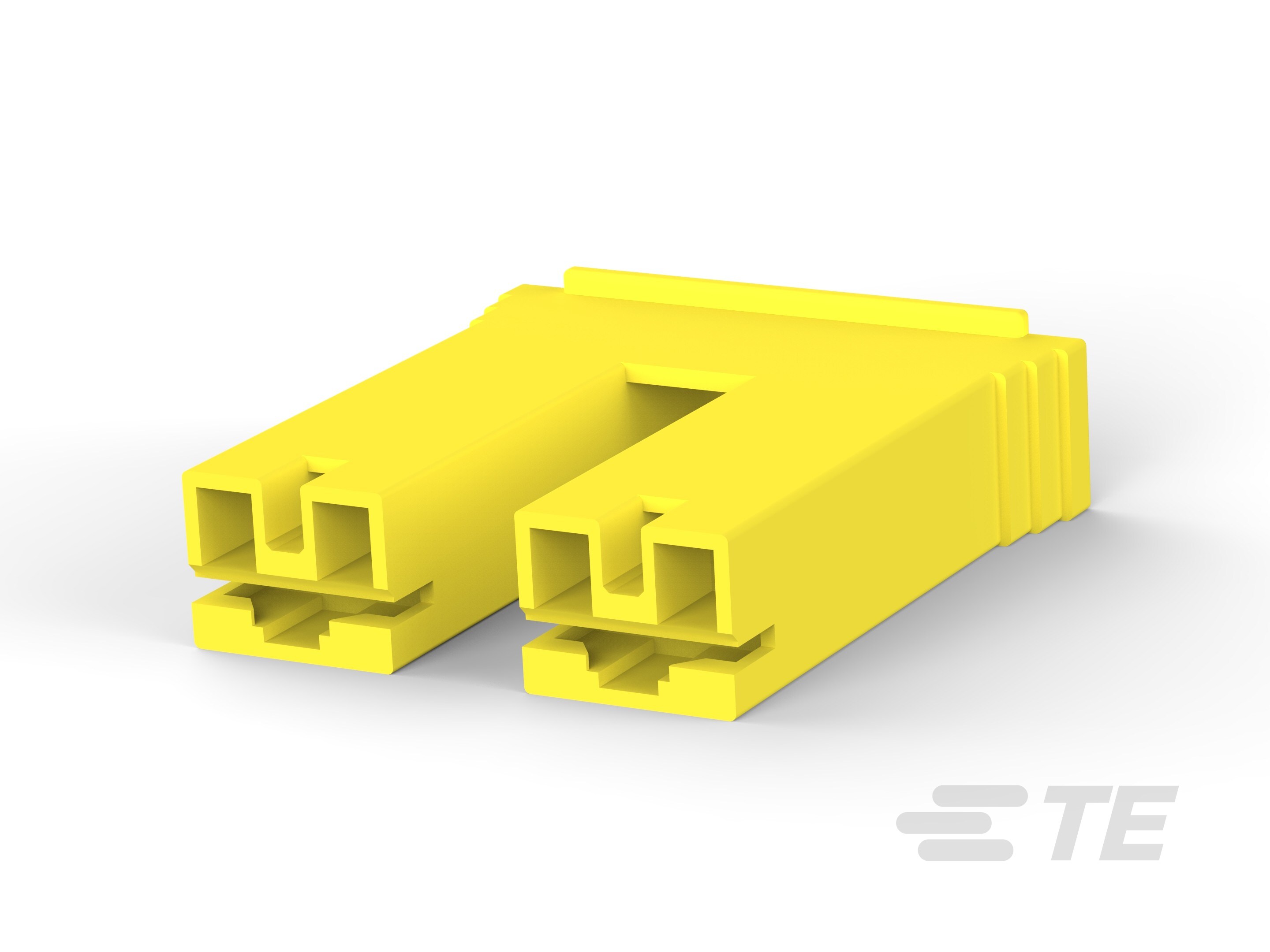

CONN RCPT HSG 0.25 2POS YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

520935-6

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 0.25 2POS YELLOW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	520935-6

Color	Yellow
For Use With/Related Products	0.25 in
For Use With/Related Products	Quick Connects
For Use With/Related Products	6.35 mm
Gender	Female, Receptacle
Material	Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Stacking Direction	Side to Side
Style	Housing
Terminal Size	6.35 mm
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

Mark II Series

Part	Stacking Direction	Terminal Type	Terminal Size	Terminal Size	Material	Note	Color	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Number of Positions	Mounting Type	Gender	Style	Tab Length	Tab Length	Termination	Contact Material	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Contact Finish	Length - Overall [x]	Length - Overall [x]	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]
TE Connectivity Raychem Cable Protection 520935-5	Side to Side	Disconnect Quick Connect	6.35 mm	0.25 in	Nylon	Contacts Not Included	Blue	0.25 in	Quick Connects	6.35 mm	2	Free Hanging (In-Line)	Female Receptacle	Housing
TE Connectivity Raychem Cable Protection 1-521229-2
TE Connectivity Raychem Cable Protection 63195-1		Standard										Free Hanging (In-Line)	Female		0.27 in	6.86 mm	Crimp	Brass	3.3 mm	2.29 mm	0.13 in	0.09 in	4.75 mm	0.187 in	0.02 "	0.51 mm	Tin	0.755 in	19.18 mm	Non-Insulated	16 AWG	20 AWG
TE Connectivity Raychem Cable Protection 520935-6	Side to Side	Disconnect Quick Connect	6.35 mm	0.25 in	Nylon	Contacts Not Included	Yellow	0.25 in	Quick Connects	6.35 mm	2	Free Hanging (In-Line)	Female Receptacle	Housing
TE Connectivity Raychem Cable Protection 170325-2		Standard										Free Hanging (In-Line)	Female				Crimp	Phosphor Bronze			0.134 in	0.075 in	4.75 mm	0.187 in	0.02 "	0.51 mm	Nickel	0.85 "	21.59 mm	Non-Insulated	16 AWG	20 AWG	1.91 mm 3.4 mm
TE Connectivity Raychem Cable Protection 1-520935-8	Side to Side	Disconnect Quick Connect	6.35 mm	0.25 in	Nylon	Contacts Not Included	Black	0.25 in	Quick Connects	6.35 mm	2	Free Hanging (In-Line)	Female Receptacle	Housing
TE Connectivity Raychem Cable Protection 1969760-1	Multiple	Disconnect Quick Connect			Polyamide (PA) Nylon	Contacts Not Included	Natural					Free Hanging (In-Line)	Female Receptacle	Housing
TE Connectivity Raychem Cable Protection 521823-1	Side to Side	Disconnect Quick Connect	4.75 mm	0.187 "	Polyamide (PA) Nylon	Contacts Not Included	Natural	0.187 "		4.75 mm		Free Hanging (In-Line)	Female Receptacle	Housing
TE Connectivity Raychem Cable Protection 2-521229-2
TE Connectivity Raychem Cable Protection 63442-1		Standard										Free Hanging (In-Line)	Female				Crimp	Brass					6.35 mm	0.25 in	0.02 "	0.51 mm	Tin	0.886 in	22.5 mm	Non-Insulated	14 AWG	18 AWG		0.09 "	2.29 mm	3.94 mm	0.155 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Mark II Series

2 Position Housing Connector Female, Receptacle Yellow 0.250" (6.35mm)

Documents

Technical documentation and resources

No documents available
