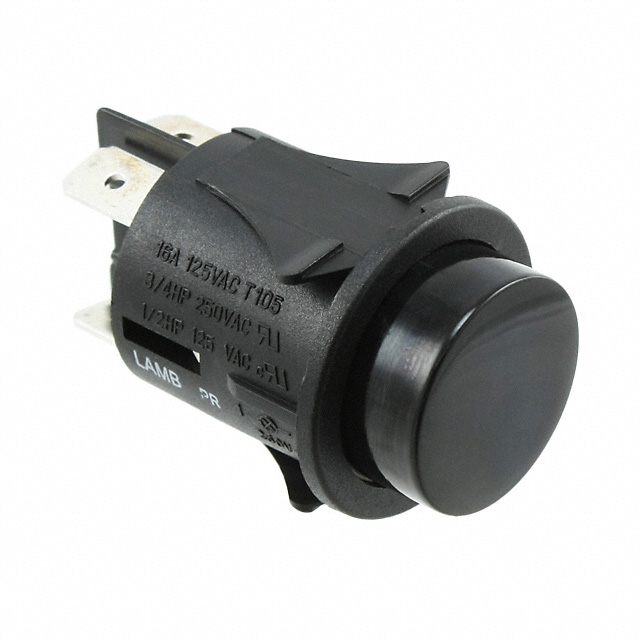

PR14EC1100

Active

E-Switch

SWITCH PUSH DPST-NO 16A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH DPST-NO 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	PR14EC1100

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Standard
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Illumination Type, Color	Circuit	Color - Actuator/Cap	Termination Style	Switch Function	Current Rating (Amps)	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Marking	Actuator Type	Type	Illumination Voltage (Nominal)	Ingress Protection	Features
E-Switch PR14EC1000-124	125 V	Amber Incandescent	DPST-NO	Amber	Quick Connect - 0.250" (6.3mm)	Off-Mom	16 A	10000 Cycles	-20 C	105 ░C	25 mm	Panel Mount Snap-In	No Marking	Button Round	Illuminated Standard	12 VAC/DC
E-Switch PR14EC1000-136/ACC-F03-1	125 V	Green Neon	DPST-NO	Green	Quick Connect - 0.250" (6.3mm)	Off-Mom	16 A	10000 Cycles	-20 C	105 ░C	25 mm	Panel Mount Snap-In	No Marking	Button Round	Illuminated Standard	125 VAC	IP54 - Dust Protected Water Resistant	PVC Cap and Frame
E-Switch PR14EC1000-116/ACC-F03-1	125 V	Neon Red	DPST-NO	Red	Quick Connect - 0.250" (6.3mm)	Off-Mom	16 A	10000 Cycles	-20 C	105 ░C	25 mm	Panel Mount Snap-In	No Marking	Button Round	Illuminated Standard	125 VAC	IP54 - Dust Protected Water Resistant	PVC Cap and Frame
E-Switch PR14EC1100	125 V		DPST-NO	Black	Quick Connect - 0.250" (6.3mm)	Off-Mom	16 A	10000 Cycles	-20 C	105 ░C	25 mm	Panel Mount Snap-In	No Marking	Button Round	Standard
E-Switch PR14EC1000-114	125 V	Incandescent Red	DPST-NO	Red	Quick Connect - 0.250" (6.3mm)	Off-Mom	16 A	10000 Cycles	-20 C	105 ░C	25 mm	Panel Mount Snap-In	No Marking	Button Round	Illuminated Standard	12 VAC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO Standard Panel Mount, Snap-In
