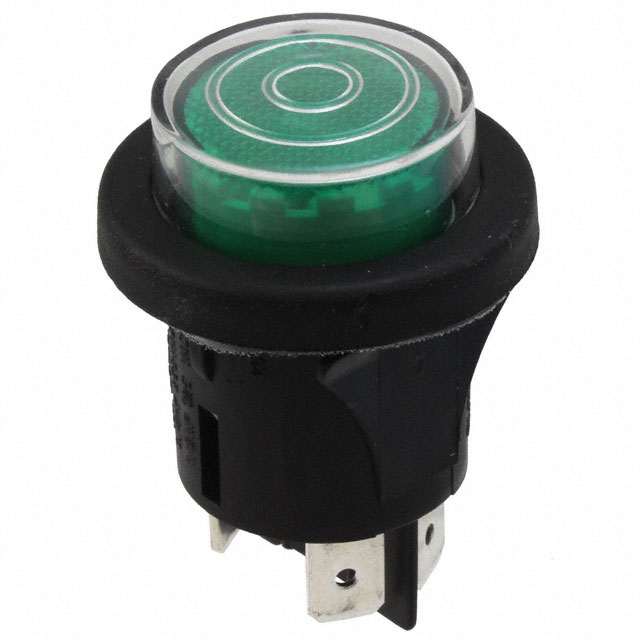

PR14EC1000-136/ACC-F03-1
ActiveE-Switch
SWITCH PUSH DPST-NO 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR14EC1000-136/ACC-F03-1
ActiveE-Switch
SWITCH PUSH DPST-NO 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR14EC1000-136/ACC-F03-1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Features | PVC Cap and Frame |
| Illumination Type, Color | Green, Neon |
| Illumination Voltage (Nominal) | 125 VAC |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 25 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.52 | |
| 15 | $ 2.12 | |||
| 30 | $ 2.02 | |||
| 60 | $ 1.94 | |||
| 105 | $ 1.87 | |||
| 255 | $ 1.77 | |||
| 510 | $ 1.69 | |||
| 1005 | $ 1.62 | |||
Description
General part information
PR14 Series
Pushbutton Switch DPST-NO Standard, Illuminated Panel Mount, Snap-In
