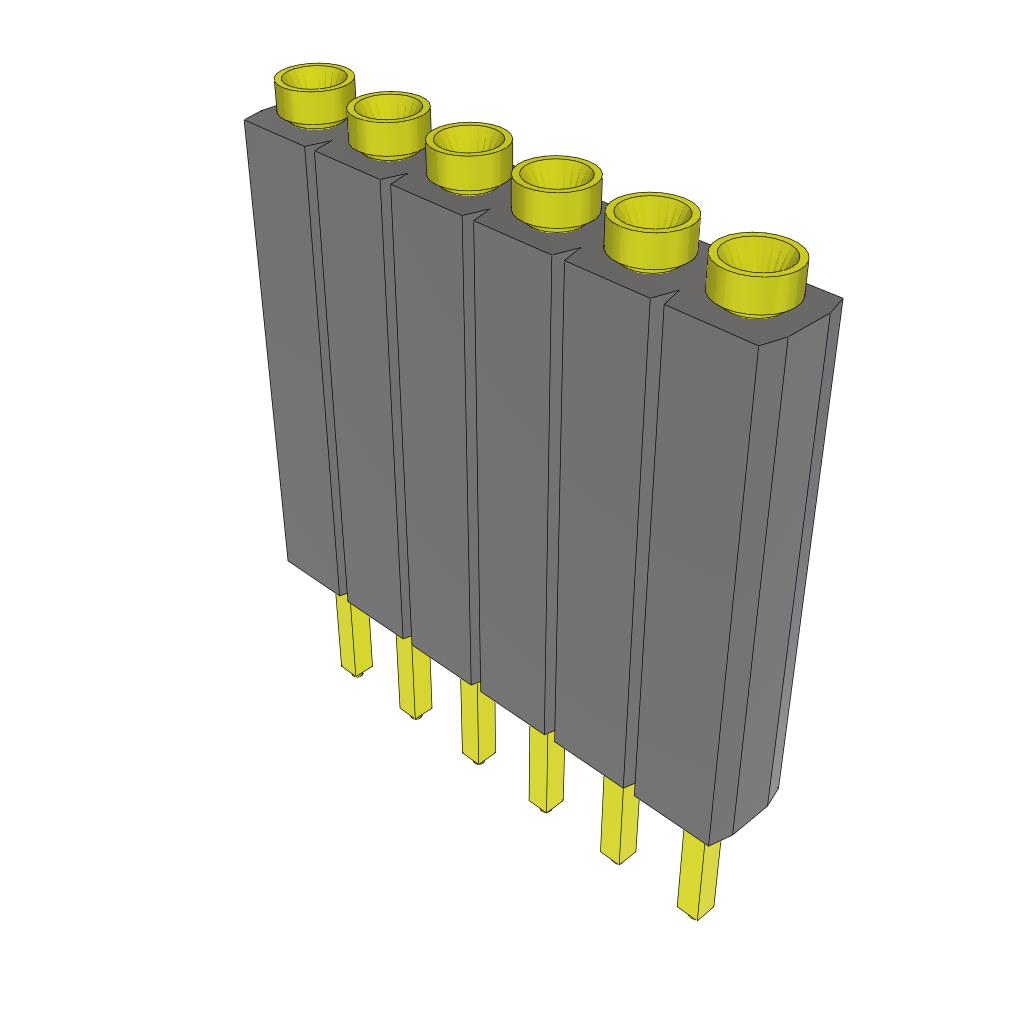

ESS-106-T-05

Active

Samtec Inc.

CONN SOCKET 6POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ESS Datasheet

ESS-106-T-05

Active

Samtec Inc.

CONN SOCKET 6POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet ESS Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS-106-T-05

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.5 in
Insulation Height	12.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

ESS-106 Series

Part	Insulation Color	Insulation Material	Contact Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Number of Positions	Contact Finish - Post	Mounting Type	Termination	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ESS-106-T-27	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Tin	Through Hole	Solder	Elevated Socket	0.273 in	6.93 mm	All	0.4 in	10.16 mm	0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold
Samtec Inc. ESS-106-G-28	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Gold	Through Hole	Solder	Elevated Socket	0.373 in	9.47 mm	All			0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold	10 çin	0.25 çm	0.3 in	7.62 mm
Samtec Inc. ESS-106-T-24	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Tin	Through Hole	Solder	Elevated Socket			All	0.4 in	10.16 mm	0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold					3.12 mm	0.123 in
Samtec Inc. ESS-106-G-05	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Gold	Through Hole	Solder	Elevated Socket	0.173 in	4.4 mm	All	0.5 in	12.7 mm	0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold	10 çin	0.25 çm
Samtec Inc. ESS-106-T-03	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Tin	Through Hole	Solder	Elevated Socket			All			0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold			0.3 in	7.62 mm	3.12 mm	0.123 in
Samtec Inc. ESS-106-T-23	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Tin	Through Hole	Solder	Elevated Socket			All			0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold			0.3 in	7.62 mm	3.12 mm	0.123 in
Samtec Inc. ESS-106-G-06	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Gold	Through Hole	Solder	Elevated Socket	0.215 in	5.46 mm	All			0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold	10 çin	0.25 çm	0.3 in	7.62 mm
Samtec Inc. ESS-106-G-03	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Gold	Through Hole	Solder	Elevated Socket			All			0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold	10 çin	0.25 çm	0.3 in	7.62 mm	3.12 mm	0.123 in
Samtec Inc. ESS-106-T-05	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Tin	Through Hole	Solder	Elevated Socket	0.173 in	4.4 mm	All	0.5 in	12.7 mm	0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold
Samtec Inc. ESS-106-G-24	Black	Liquid Crystal Polymer (LCP)	Female Socket	Circular	-55 °C	125 °C	UL94 V-0	Push-Pull	6	Gold	Through Hole	Solder	Elevated Socket			All	0.4 in	10.16 mm	0.1 in	2.54 mm	1	Beryllium Copper	10 çin	0.25 çm	Gold	10 çin	0.25 çm			3.12 mm	0.123 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.30

Description

General part information

ESS-106 Series

6 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

ESS Datasheet

Datasheet
