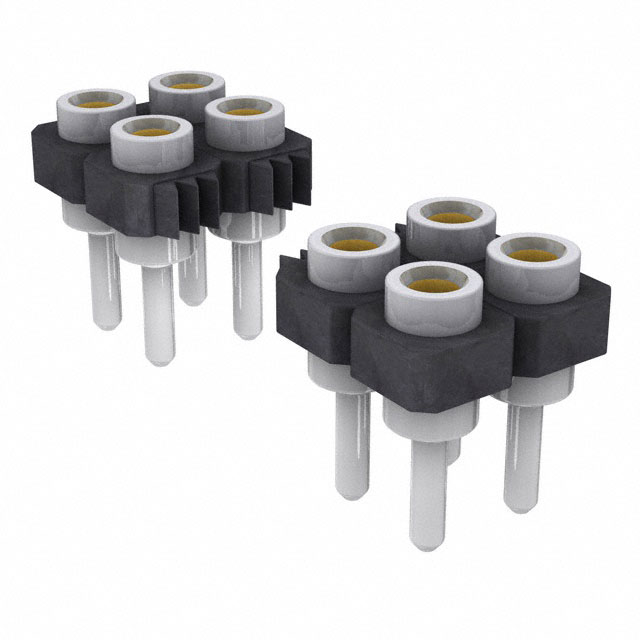

SDL-109-T-10

Unknown

Samtec Inc.

CONN RCPT 18POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDL-109-T-10

Unknown

Samtec Inc.

CONN RCPT 18POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDL-109-T-10

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	0.108 in
Contact Length - Post	2.75 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.1 mm
Insulation Height	0.122 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SDL-109 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Insulation Material	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	Number of Rows	Mounting Type	Insulation Color	Number of Positions	Termination	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SDL-109-TT-11	105 ░C	-55 °C	0.132 in	3.35 mm	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	0.108 in	2.75 mm	2	Through Hole	Black	18	Solder	All	Tin	0.1 in	2.54 mm	Push-Pull	Beryllium Copper	2.54 mm	0.1 in	Circular
Samtec Inc. SDL-109-G-10	125 °C	-55 °C	0.122 in	3.1 mm	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	0.108 in	2.75 mm	2	Through Hole	Black	18	Solder	All	Gold	0.1 in	2.54 mm	Push-Pull	Beryllium Copper	2.54 mm	0.1 in	Circular	30 Áin	0.76 Ám	Gold	10 çin	0.25 çm
Samtec Inc. SDL-109-G-12	125 °C	-55 °C			Liquid Crystal Polymer (LCP)	Receptacle	Female Socket			2	Through Hole	Black	18	Solder	All	Gold	0.1 in	2.54 mm	Push-Pull	Beryllium Copper	2.54 mm	0.1 in	Circular	30 Áin	0.76 Ám	Gold	10 çin	0.25 çm	0.095 in	2.41 mm	2.41 mm	0.095 in
Samtec Inc. SDL-109-TT-10	105 ░C	-55 °C	0.122 in	3.1 mm	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	0.108 in	2.75 mm	2	Through Hole	Black	18	Solder	All	Tin	0.1 in	2.54 mm	Push-Pull	Beryllium Copper	2.54 mm	0.1 in	Circular
Samtec Inc. SDL-109-T-10	125 °C	-55 °C	0.122 in	3.1 mm	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	0.108 in	2.75 mm	2	Through Hole	Black	18	Solder	All		0.1 in	2.54 mm	Push-Pull	Beryllium Copper	2.54 mm	0.1 in	Circular	30 Áin	0.76 Ám	Gold
Samtec Inc. SDL-109-G-19	125 °C	-55 °C	0.083 "	2.1 mm	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket			2	Through Hole	Black	18	Solder	All	Gold	0.1 in	2.54 mm	Push-Pull	Beryllium Copper	2.54 mm	0.1 in	Circular	30 Áin	0.76 Ám	Gold	10 çin	0.25 çm			2.08 mm	0.082 "
Samtec Inc. SDL-109-T-12	125 °C	-55 °C			Liquid Crystal Polymer (LCP)	Receptacle	Female Socket			2	Through Hole	Black	18	Solder	All		0.1 in	2.54 mm	Push-Pull	Beryllium Copper	2.54 mm	0.1 in	Circular	30 Áin	0.76 Ám	Gold			0.095 in	2.41 mm	2.41 mm	0.095 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.97

Description

General part information

SDL-109 Series

18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
