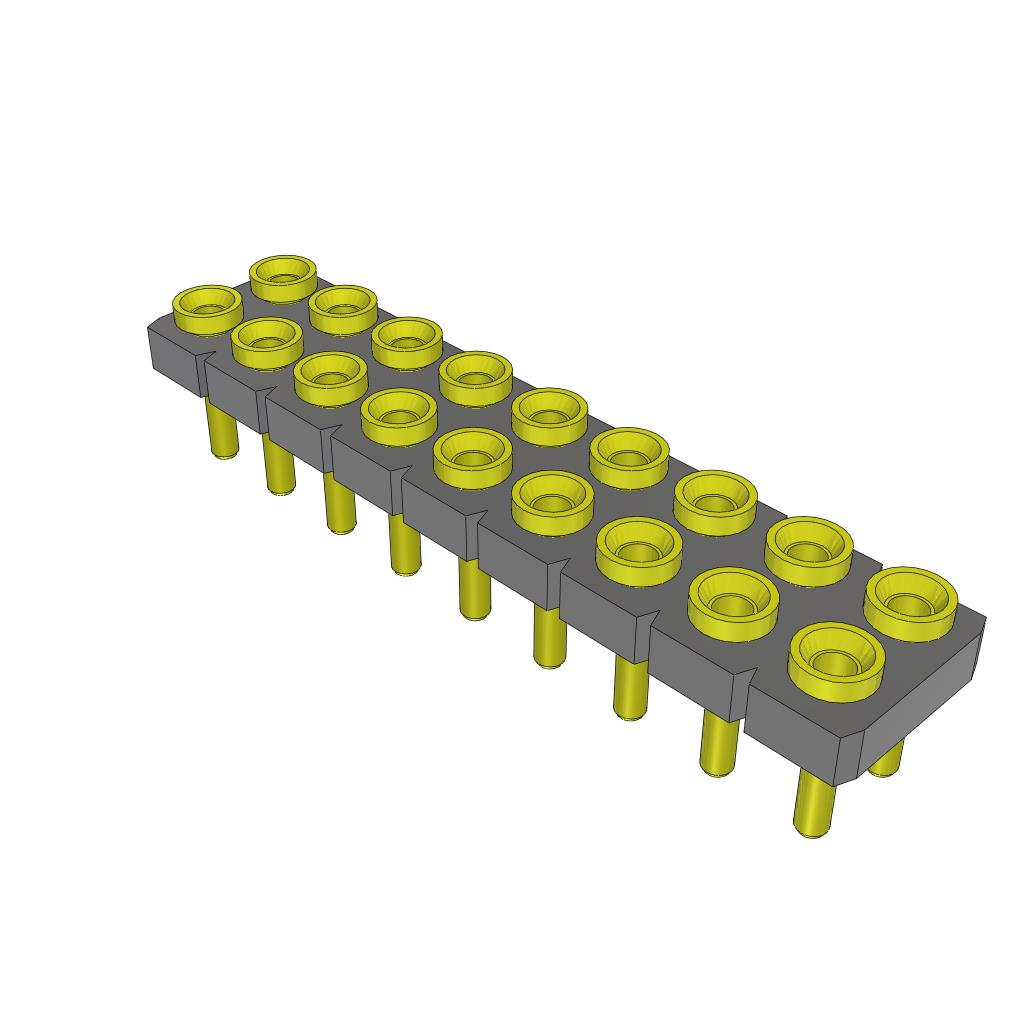

SDL-109-G-12
ActiveSamtec Inc.
RECEPTACLE, 2.54MM, THT VERT, 18WAY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SDL-109-G-12
ActiveSamtec Inc.
RECEPTACLE, 2.54MM, THT VERT, 18WAY ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDL-109-G-12 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Post [x] | 2.41 mm |
| Contact Length - Post [x] | 0.095 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.095 in |
| Insulation Height [z] | 2.41 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
SDL-109 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Insulation Material | Connector Type | Contact Type | Contact Length - Post | Contact Length - Post | Number of Rows | Mounting Type | Insulation Color | Number of Positions | Termination | Number of Positions Loaded | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 105 ░C | -55 °C | 0.132 in | 3.35 mm | Liquid Crystal Polymer (LCP) | Receptacle | Female Socket | 0.108 in | 2.75 mm | 2 | Through Hole | Black | 18 | Solder | All | Tin | 0.1 in | 2.54 mm | Push-Pull | Beryllium Copper | 2.54 mm | 0.1 in | Circular | |||||||||
Samtec Inc. | 125 °C | -55 °C | 0.122 in | 3.1 mm | Liquid Crystal Polymer (LCP) | Receptacle | Female Socket | 0.108 in | 2.75 mm | 2 | Through Hole | Black | 18 | Solder | All | Gold | 0.1 in | 2.54 mm | Push-Pull | Beryllium Copper | 2.54 mm | 0.1 in | Circular | 30 Áin | 0.76 Ám | Gold | 10 çin | 0.25 çm | ||||
Samtec Inc. | 125 °C | -55 °C | Liquid Crystal Polymer (LCP) | Receptacle | Female Socket | 2 | Through Hole | Black | 18 | Solder | All | Gold | 0.1 in | 2.54 mm | Push-Pull | Beryllium Copper | 2.54 mm | 0.1 in | Circular | 30 Áin | 0.76 Ám | Gold | 10 çin | 0.25 çm | 0.095 in | 2.41 mm | 2.41 mm | 0.095 in | ||||
Samtec Inc. | 105 ░C | -55 °C | 0.122 in | 3.1 mm | Liquid Crystal Polymer (LCP) | Receptacle | Female Socket | 0.108 in | 2.75 mm | 2 | Through Hole | Black | 18 | Solder | All | Tin | 0.1 in | 2.54 mm | Push-Pull | Beryllium Copper | 2.54 mm | 0.1 in | Circular | |||||||||
Samtec Inc. | 125 °C | -55 °C | 0.122 in | 3.1 mm | Liquid Crystal Polymer (LCP) | Receptacle | Female Socket | 0.108 in | 2.75 mm | 2 | Through Hole | Black | 18 | Solder | All | 0.1 in | 2.54 mm | Push-Pull | Beryllium Copper | 2.54 mm | 0.1 in | Circular | 30 Áin | 0.76 Ám | Gold | |||||||
Samtec Inc. | 125 °C | -55 °C | 0.083 " | 2.1 mm | Liquid Crystal Polymer (LCP) | Receptacle | Female Socket | 2 | Through Hole | Black | 18 | Solder | All | Gold | 0.1 in | 2.54 mm | Push-Pull | Beryllium Copper | 2.54 mm | 0.1 in | Circular | 30 Áin | 0.76 Ám | Gold | 10 çin | 0.25 çm | 2.08 mm | 0.082 " | ||||
Samtec Inc. | 125 °C | -55 °C | Liquid Crystal Polymer (LCP) | Receptacle | Female Socket | 2 | Through Hole | Black | 18 | Solder | All | 0.1 in | 2.54 mm | Push-Pull | Beryllium Copper | 2.54 mm | 0.1 in | Circular | 30 Áin | 0.76 Ám | Gold | 0.095 in | 2.41 mm | 2.41 mm | 0.095 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SDL-109 Series
18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
