AWP 16 Series

Part	Number of Positions	Cable Termination	Contact Finish	Row Spacing	Contact Type	Features	Pitch	Wire Type	Color	Connector Type	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness
Assmann WSW Components AWP 16-7540-T	16	IDC	Tin	0.1 in	Female Socket	Feed Through Polarizing Key	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2
Assmann WSW Components AWP16-7541-T-R	16	IDC	Tin	0.1 in	Female Socket	Feed Through Polarizing Key Strain Relief	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2
Assmann WSW Components AWP16-8541-T-R	16	IDC	Tin	0.1 in	Female Socket	Feed Through Strain Relief	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2
Assmann WSW Components AWP16-7241-T-R	16	IDC	Gold	0.1 in	Female Socket	Feed Through Polarizing Key Strain Relief	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2	0	Flash	Flash
Assmann WSW Components AWP16-8240-T-R	16	IDC	Gold	0.1 in	Female Socket	Feed Through	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2

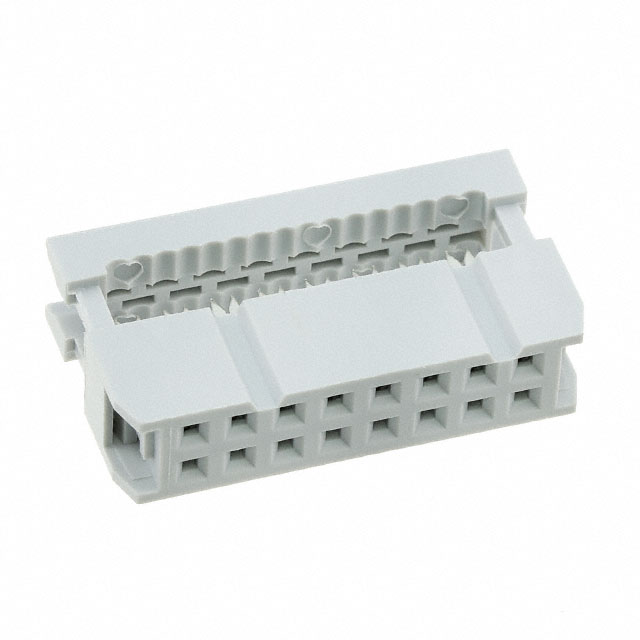

Assmann WSW Components AWP 16-8540-T	16	IDC	Tin	0.1 in	Female Socket	Feed Through	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2
Assmann WSW Components AWP16-8241-T-R	16	IDC	Gold	0.1 in	Female Socket	Feed Through Strain Relief	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2
Assmann WSW Components AWP16-7240-T-R	16	IDC	Gold	0.1 in	Female Socket	Feed Through Polarizing Key	0.1 in	Ribbon Cable	Gray	Socket	Free Hanging (In-Line)	2	0	Flash	Flash
