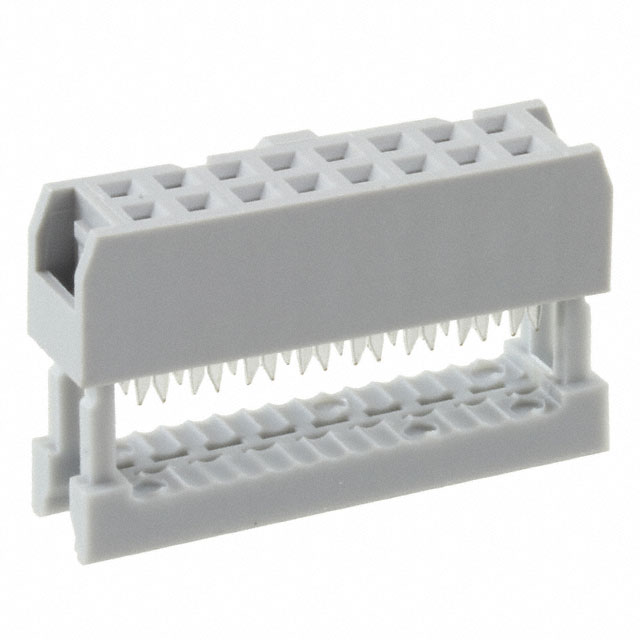

AWP 16-7540-T

Active

Assmann WSW Components

CONN SOCKET 16POS IDC TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SOCKET 16POS IDC TIN

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Mounting Type	Wire Type	Cable Termination	Connector Type	Row Spacing [x]	Row Spacing	Number of Positions	Color	Features	Contact Finish	Contact Type	Number of Rows	Contact Finish Thickness
Assmann WSW Components AWP 16-7540-T	2.54 mm	0.1 in	Free Hanging (In-Line)	Ribbon Cable	IDC	Socket	0.1 in	2.54 mm	16	Gray	Feed Through Polarizing Key	Tin	Female Socket	2
Assmann WSW Components AWP16-7541-T-R	2.54 mm	0.1 in	Free Hanging (In-Line)	Ribbon Cable	IDC	Socket	0.1 in	2.54 mm	16	Gray	Feed Through Polarizing Key Strain Relief	Tin	Female Socket	2
Assmann WSW Components AWP16-7241-T-R	2.54 mm	0.1 in	Free Hanging (In-Line)	Ribbon Cable	IDC	Socket	0.1 in	2.54 mm	16	Gray	Feed Through Polarizing Key Strain Relief	Gold	Female Socket	2	Flash
Assmann WSW Components AWP16-8240-T-R	2.54 mm	0.1 in	Free Hanging (In-Line)	Ribbon Cable	IDC	Socket	0.1 in	2.54 mm	16	Gray	Feed Through	Gold	Female Socket	2
Assmann WSW Components AWP 16-8540-T	2.54 mm	0.1 in	Free Hanging (In-Line)	Ribbon Cable	IDC	Socket	0.1 in	2.54 mm	16	Gray	Feed Through	Tin	Female Socket	2
Assmann WSW Components AWP16-7240-T-R	2.54 mm	0.1 in	Free Hanging (In-Line)	Ribbon Cable	IDC	Socket	0.1 in	2.54 mm	16	Gray	Feed Through Polarizing Key	Gold	Female Socket	2	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Rectangular Socket Connector IDC Tin
