901-9531-3
ActiveAmphenol RF
CONN SMA PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
901-9531-3
ActiveAmphenol RF
CONN SMA PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 901-9531-3 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |

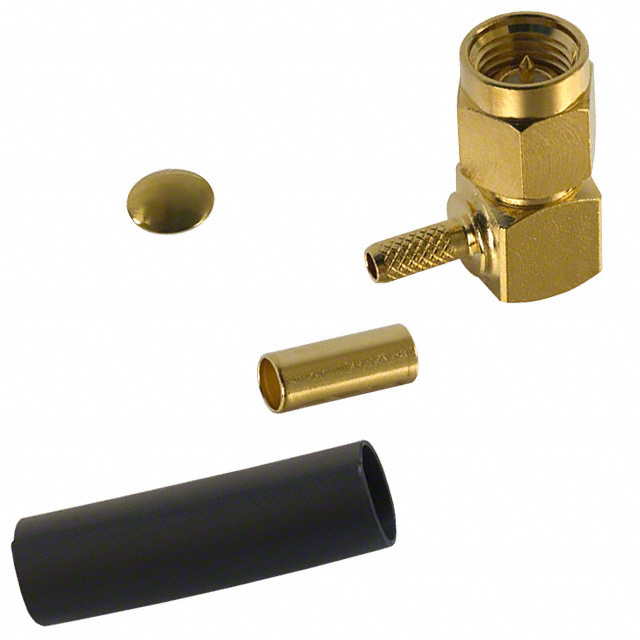

| Includes | 1 Heat Shrink, 1 Connector, 1 End Cap, 1 Ferrule |
| Ingress Protection | Weatherproof |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.63 | |
| 10 | $ 28.30 | |||
| 25 | $ 25.65 | |||
| 50 | $ 23.86 | |||
| 100 | $ 22.25 | |||
| 250 | $ 20.34 | |||
| 500 | $ 19.05 | |||
Description
General part information
901-95 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Documents
Technical documentation and resources
No documents available
