901-9531-1SF

Active

Amphenol RF

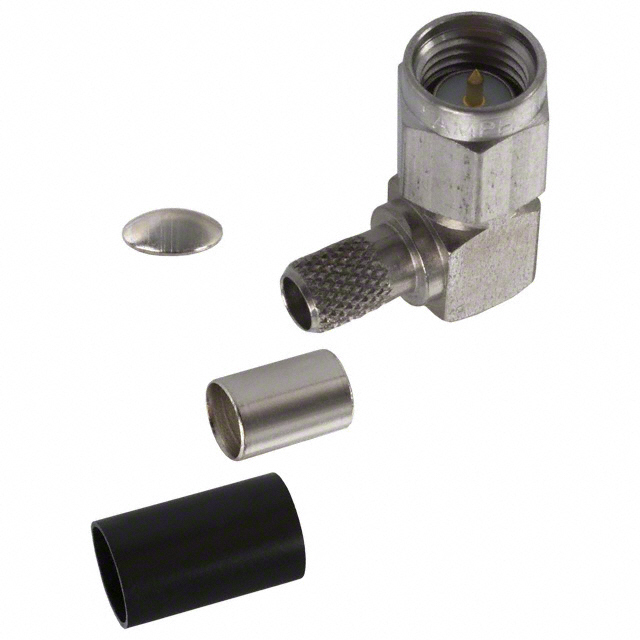

CONN SMA PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

901-9531-1SF

Active

Amphenol RF

CONN SMA PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901-9531-1SF

Body Material	Stainless Steel
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Heat Shrink, 1 Connector, 1 End Cap, 1 Ferrule
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

901-95 Series

Part	Connector Style	Dielectric Material	Frequency - Max [Max]	Shield Termination	Housing Color	Body Material	Impedance	Connector Type	Body Finish	Mounting Type	Cable Group	Center Contact Material	Ingress Protection	Center Contact Plating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Ports	Voltage Rating	Includes	Cable Group
Amphenol RF 901-9501-3	SMA	Polytetrafluoroethylene (PTFE)	12.4 GHz	Solder	Gold	Stainless Steel	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line)	188 188A 316 LMR-100 M17/119-RG174 RG-174	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	375 V
Amphenol RF 901-9531-12	SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Crimp	Gold	Stainless Steel	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	188 316 Double Braid M17/152-RD316 RG-179	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	375 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink
Amphenol RF 901-9531-12SF	SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Crimp	Silver	Stainless Steel	50 Ohms	Male Pin Plug		Free Hanging (In-Line) Right Angle	188 316 Double Braid M17/152-RD316 RG-179	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	375 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink
Amphenol RF 901-9511-3SF	SMA	Polytetrafluoroethylene (PTFE)	12.4 GHz	Crimp	Silver	Stainless Steel	50 Ohms	Male Pin Plug		Free Hanging (In-Line)	188 188A 316 LMR-100 M17/119-RG174 RG-174	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	375 V
Amphenol RF 901-9531-2	SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Crimp	Gold	Stainless Steel	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	500 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink
Amphenol RF 901-9531-1SF	SMA	Polytetrafluoroethylene (PTFE)	12.4 GHz	Crimp	Silver	Stainless Steel	50 Ohms	Male Pin Plug		Free Hanging (In-Line) Right Angle	RG-55	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	500 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink	142 223 400
Amphenol RF 901-9531-3	SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Crimp	Gold	Stainless Steel	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	188 188A 316 LMR-100 M17/119-RG174 RG-174	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	375 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink
Amphenol RF 901-9511-3	SMA	Polytetrafluoroethylene (PTFE)	12.4 GHz	Crimp	Gold	Stainless Steel	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line)	188 188A 316 LMR-100 M17/119-RG174 RG-174	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	750 VDC
Amphenol RF 901-9521-3	SMA	Polytetrafluoroethylene (PTFE)	12.4 GHz	Solder	Gold	Stainless Steel	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	188 188A 316 LMR-100 M17/119-RG174 RG-174	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	375 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink
Amphenol RF 901-9531-3SF	SMA	Polytetrafluoroethylene (PTFE)	18 GHz	Crimp	Silver	Stainless Steel	50 Ohms	Male Pin Plug		Free Hanging (In-Line) Right Angle	188 188A 316 LMR-100 M17/119-RG174 RG-174	Beryllium Copper	Weatherproof	Gold	500	-65 ░C	165 °C	Solder	1	375 V	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.44
		10	$ 12.52
		25	$ 12.11

Description

General part information

901-95 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
