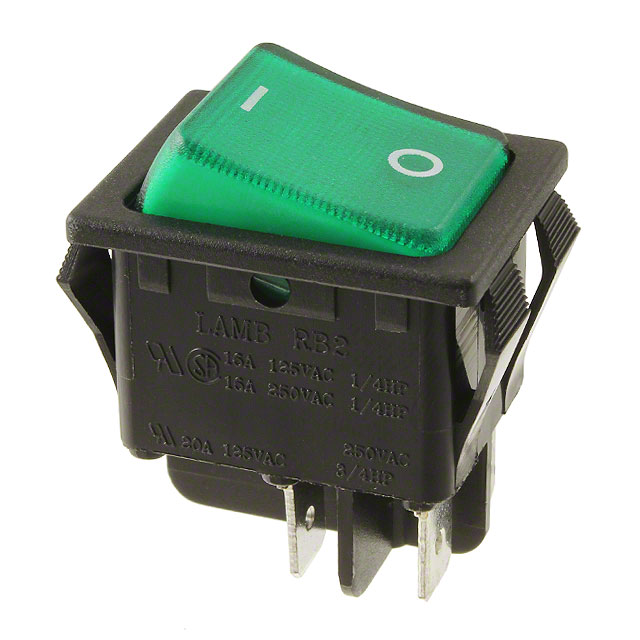

RB242D102R-137

Active

E-Switch

SWITCH ROCKER DPST 20A 125V

Deep-Dive with AI

Search across all available documentation for this part.

RB242D102R-137

Active

E-Switch

SWITCH ROCKER DPST 20A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RB242D102R-137

Actuator Marking	O I
Actuator Type	Concave (Curved) - Illuminated
Circuit	DPST
Color - Actuator/Cap	Green
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Illumination Type, Color	Green, Neon
Illumination Voltage (Nominal)	250 VAC
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

RB242D1 Series

Part	Illumination Type, Color	Current Rating (Amps)	Switch Function	Electrical Life	Mounting Type	Circuit	Illumination Voltage (Nominal)	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Ingress Protection	Features
E-Switch RB242D1021-127	Amber Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Amber	O -	125 V
E-Switch RB242D1000-117	Neon Red	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Red	No Marking	125 V
E-Switch RB242D1000-136/ACC-F02-1	Green Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	125 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Green	No Marking	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D1100		20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST		Concave (Curved)	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Black	No Marking	125 V
E-Switch RB246C1100		16 A	On-Off-On	10000 Cycles	Panel Mount Snap-In	DPDT		Concave (Curved)	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Black	No Marking	125 V
E-Switch RB242D1021-147	Blue Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Blue	O -	125 V
E-Switch RB242D1121/ACC-F02-1		20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST		Concave (Curved)	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Black	O -	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D1021-117/ACC-F02-1	Neon Red	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Red	O -	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D1021-116/ACC-F02-1	Neon Red	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	125 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Red	O -	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D102R-137	Green Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Green	O I	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.05
		10	$ 2.63
		25	$ 2.48
		50	$ 2.37
		100	$ 2.27
		250	$ 2.14
		500	$ 2.05
		1000	$ 1.96

Description

General part information

RB242D1 Series

Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In
