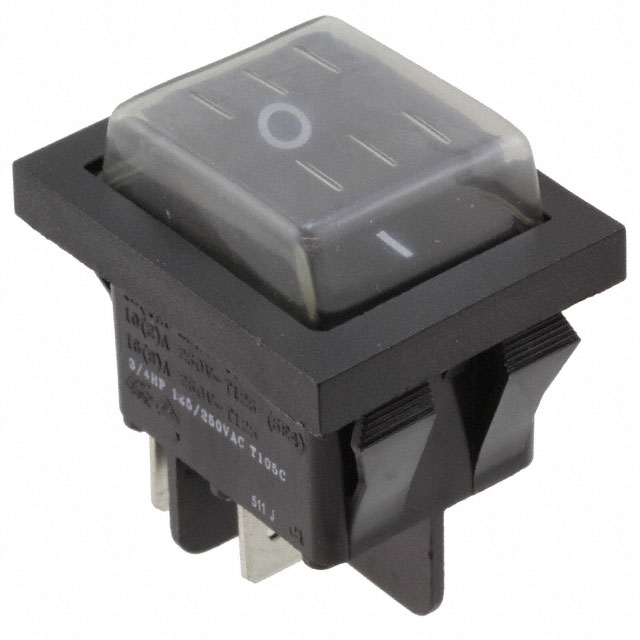

SWITCH ROCKER DPST 20A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RB242D1121/ACC-F02-1

Active

E-Switch

SWITCH ROCKER DPST 20A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RB242D1121/ACC-F02-1

Actuator Marking	O -
Actuator Type	Concave (Curved)
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Features	Sealing Boot
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

RB242D1 Series

Part	Illumination Type, Color	Current Rating (Amps)	Switch Function	Electrical Life	Mounting Type	Circuit	Illumination Voltage (Nominal)	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Ingress Protection	Features
E-Switch RB242D1021-127	Amber Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Amber	O -	125 V
E-Switch RB242D1000-117	Neon Red	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Red	No Marking	125 V
E-Switch RB242D1000-136/ACC-F02-1	Green Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	125 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Green	No Marking	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D1100		20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST		Concave (Curved)	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Black	No Marking	125 V
E-Switch RB246C1100		16 A	On-Off-On	10000 Cycles	Panel Mount Snap-In	DPDT		Concave (Curved)	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Black	No Marking	125 V
E-Switch RB242D1021-147	Blue Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Blue	O -	125 V
E-Switch RB242D1121/ACC-F02-1		20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST		Concave (Curved)	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Black	O -	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D1021-117/ACC-F02-1	Neon Red	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Red	O -	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D1021-116/ACC-F02-1	Neon Red	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	125 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Red	O -	125 V	IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RB242D102R-137	Green Neon	20 A	On-Off	10000 Cycles	Panel Mount Snap-In	DPST	250 VAC	Concave (Curved) - Illuminated	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	Green	O I	125 V
