7919A 01010000

Active

Belden Inc.

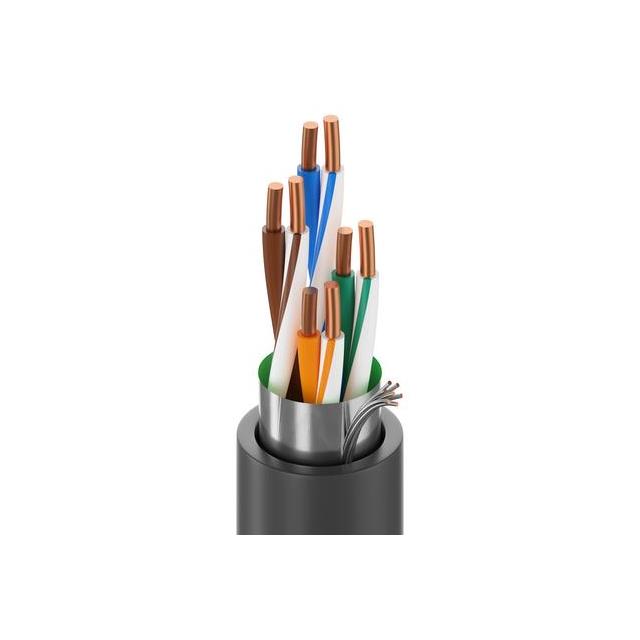

CABLE CAT5E 8COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	7919A 01010000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	3048 m
Length [x]	10000 ft
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Shield Material	Length	Length	Shield Type	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Cable Type	Number of Conductors	Jacket Color	Wire Gauge	Conductor Material	Ratings	Shield Coverage	Conductor Strand	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage
Belden Inc. 7919A 0101000	Poly-Vinyl Chloride (PVC)	Aluminum	1000 ft	15.24 m 304.8 m	Foil	50 ft 100 ft 500 '	30.5 m 152.4 m	6.73 mm	0.265 in	Network	Multi-Pair Cat5e	8	Black	24 AWG	Copper Bare	UL Style CMR	100 %	Solid	Polyolefin (PO)	-40 °C	75 ░C	Drain Wire Oil Resistant Rip Cord UV Resistant
Belden Inc. 7919A 0061000	Poly-Vinyl Chloride (PVC)	Aluminum	1000 ft	304.8 m	Foil			6.73 mm	0.265 in	Industrial Network	Multi-Pair Cat5e	8	Blue	24 AWG	Copper Bare	UL Style CMR	100 %	Solid	Polyolefin (PO)	-40 °C	75 ░C	Drain Wire Oil Resistant UV Resistant	300 V
Belden Inc. 7919A 01010000	Poly-Vinyl Chloride (PVC)	Aluminum		3048 m	Foil	10000 ft		6.73 mm	0.265 in	Industrial Network	Multi-Pair Cat5e	8	Black	24 AWG	Copper Bare	UL Style CMR	100 %	Solid	Polyolefin (PO)	-40 °C	75 ░C	Drain Wire Oil Resistant UV Resistant	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 1.63

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil 10000' (3048.0m)
