7919A 0101000
ActiveBelden Inc.

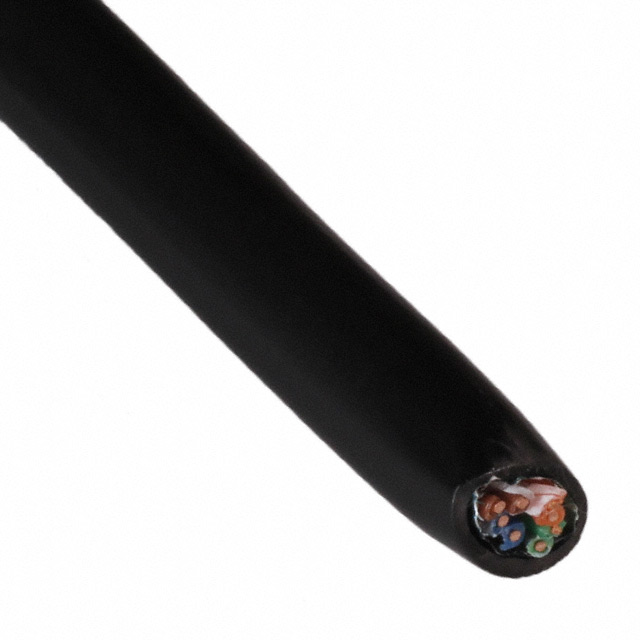

CABLE CAT5E 8COND 24AWG BLK 500'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7919A 0101000
ActiveBelden Inc.
CABLE CAT5E 8COND 24AWG BLK 500'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7919A 0101000 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Rip Cord, UV Resistant, Oil Resistant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.73 mm |
| Jacket (Insulation) Diameter [diameter] | 0.265 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 500 ', 100 ft, 50 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style CMR |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Network |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 352.49 | |
| 1 | $ 179.07 | |||
| 1 | $ 1010.46 | |||
| 5 | $ 288.40 | |||
| 5 | $ 947.31 | |||
| 5 | $ 146.52 | |||
| 10 | $ 113.96 | |||
| 10 | $ 884.15 | |||
| 10 | $ 224.31 | |||
| 25 | $ 97.68 | |||
| 25 | $ 192.27 | |||
| 50 | $ 91.17 | |||
| 50 | $ 179.45 | |||
| 100 | $ 84.65 | |||
| Spool | 1000 | $ 1.77 | ||
| 2000 | $ 1.68 | |||
| 3000 | $ 1.63 | |||
| 5000 | $ 1.57 | |||
Description
General part information
7919A Series
8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil 1000.0' (304.8m)
