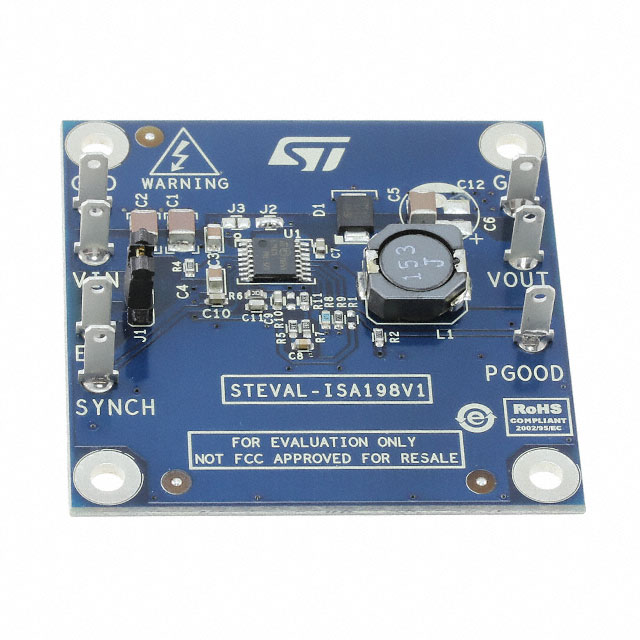

STEVAL-ISA198V1

STEVAL-ISA198V1

Active
STMicroelectronics

2 A STEP DOWN DC - DC SWITCHING REGULATOR (VIN = 4.5 V TO 60 V) BASED ON THE L7987L

Find alt
STEVAL-ISA198V1

STEVAL-ISA198V1

Active
STMicroelectronics

2 A STEP DOWN DC - DC SWITCHING REGULATOR (VIN = 4.5 V TO 60 V) BASED ON THE L7987L

Find alt

Description

General part information

STEVAL Series

The STEVAL-BFA001V1B is an industrial reference design kit designed for condition monitoring (CM) and predictive maintenance (PdM).

The hardware development kit consists of an industrial sensor board (STEVAL-IDP005V1), an adapter for the ST-LINK/V2-1 programming and debugging tool (STEVAL-UKI001V1), a 0.050" 10-pin flat cable, a 4-pole cable mount connector plug with male contacts and an M12 female connector with a 2 m cable.

The firmware package includes dedicated algorithms for advanced time and frequency domain signal processing and analysis of the 3D digital accelerometer with 3 kHz flat bandwidth. The package includes drivers for pressure, relative humidity and temperature sensor monitoring. Audio algorithms for acoustic emission (AE) are also part of the package.

Technical Specifications

Parameters and characteristics for this part

SpecificationSTEVAL-ISA198V1
Board TypeFully Populated
ContentsBoard
Current - Output2 A
Frequency - Switching500 kHz
Main PurposeDC/DC, Step Down
Non-Isolated Output Count1 count
Output TypeNon-Isolated
Regulator TopologyBuck
Supplied ContentsBoard(s)
Total Output Count1
Utilized IC / PartL7987L
Voltage - Input (Maximum)60 V
Voltage - Input (Minimum)4.5 V
Voltage - Output5 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
