Technical Specifications
Parameters and characteristics for this part
| Specification | 1825008-2 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | BCD |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 10000 Cycles |
| Length | 10 mm |
| Length | 0.394 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 20 VAC/DC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.80 | |
| 10 | $ 3.47 | |||
| 45 | $ 3.16 | |||
| 135 | $ 2.91 | |||
Description
General part information

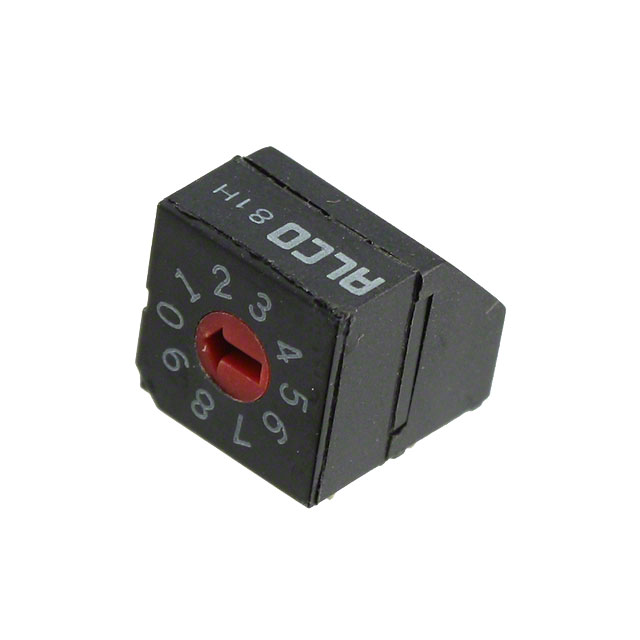

ALCOSWITCH Rotary DIP DRD Series
10 Position, Flush Actuator, Red Actuator, Rotary DIP, 10 Switch, Thermoplastic, .4 A Contact Rating, ALCOSWITCH DIP, Rotary Switches
