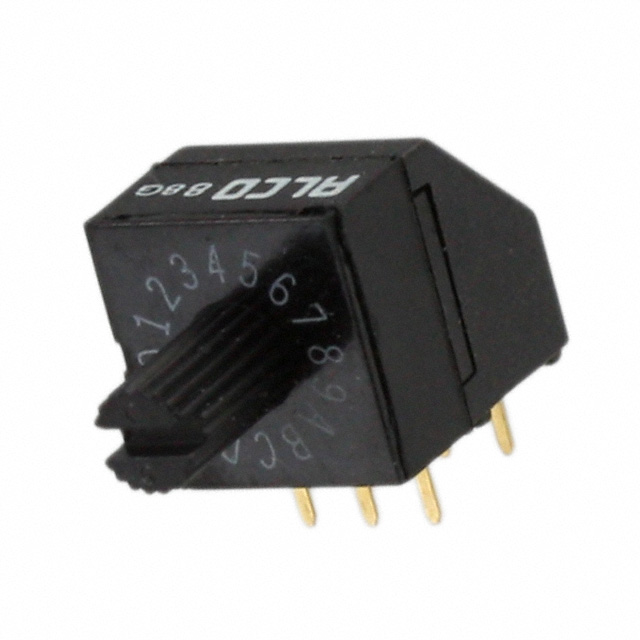

1825008-8
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROTARY DIP HEX 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1825008-8
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROTARY DIP HEX 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1825008-8 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 20000 Steps |
| Length | 10 mm |
| Length | 0.394 in |
| Mechanical Life | 20000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 20 VAC/DC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.14 | |
| 20 | $ 5.87 | |||
| 40 | $ 5.33 | |||
| 100 | $ 4.92 | |||
Description
General part information
ALCOSWITCH Rotary DIP DRD Series
Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary with Shaft Actuator 0.4VA 20VAC/DC
