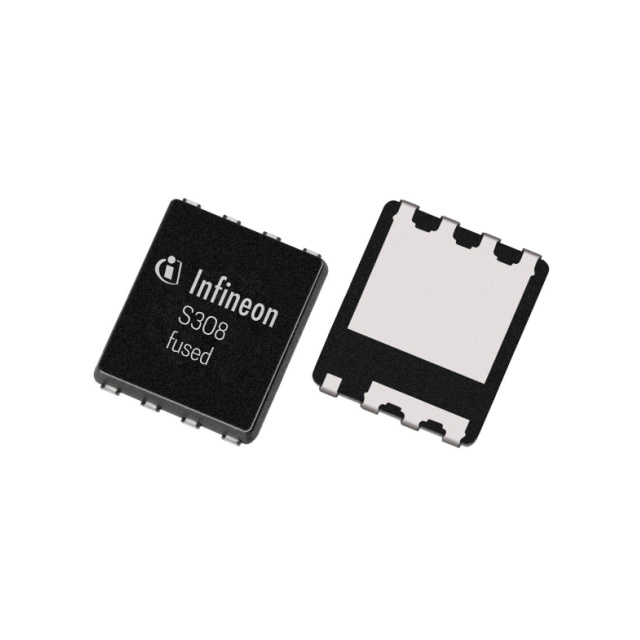

BSZ0994NSATMA1

Active

Infineon Technologies

OPTIMOS™ N-CHANNEL POWER MOSFET 30 V ; PQFN 3.3 X 3.3 FUSED LEAD PACKAGE; 7 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSZ0994NSATMA1

Active

Infineon Technologies

OPTIMOS™ N-CHANNEL POWER MOSFET 30 V ; PQFN 3.3 X 3.3 FUSED LEAD PACKAGE; 7 MOHM;

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSZ0994NSATMA1

Current - Continuous Drain (Id) @ 25°C	13 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	7 nC
Input Capacitance (Ciss) (Max) @ Vds	890 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	2.1 W
Rds On (Max) @ Id, Vgs	7 mOhm
Supplier Device Package	PG-TSDSON-8-25
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2 V

BSZ0994 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	FET Type	Power Dissipation (Max)	Vgs (Max)	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Supplier Device Package	Mounting Type	Rds On (Max) @ Id, Vgs
Infineon Technologies BSZ0994NSATMA1	-55 °C	150 °C	MOSFET (Metal Oxide)	30 V	4.5 V 10 V	13 A	7 nC	N-Channel	2.1 W	20 V	8-PowerTDFN	890 pF	2 V	PG-TSDSON-8-25	Surface Mount	7 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.34
		10	$ 0.84
		100	$ 0.56
		500	$ 0.44
		1000	$ 0.40
		2000	$ 0.36
	Digi-Reel®	1	$ 1.34
		10	$ 0.84
		100	$ 0.56
		500	$ 0.44
		1000	$ 0.40
		2000	$ 0.36
	Tape & Reel (TR)	5000	$ 0.31

Description

General part information

BSZ0994 Series

With the OptiMOS™ 5 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.
