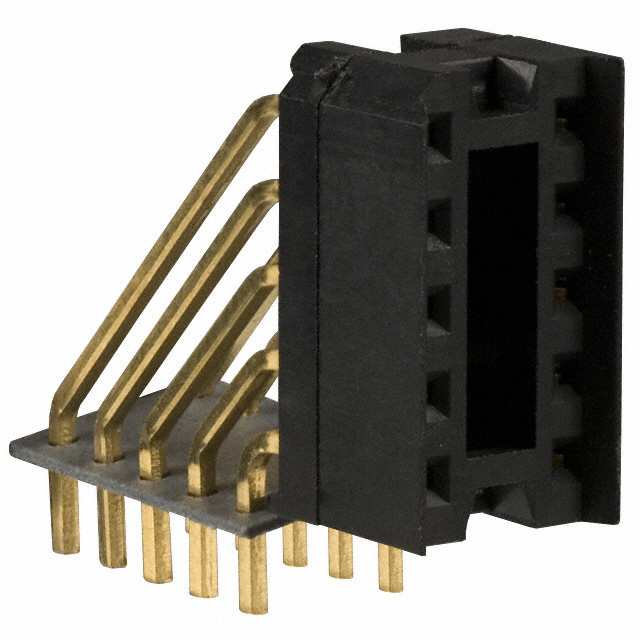

10-2810-90
ActiveAries Electronics
CONN IC DIP SOCKET 10POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-2810-90
ActiveAries Electronics
CONN IC DIP SOCKET 10POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10-2810-90 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Current Rating (Amps) | 1.5 A |
| Features | Closed Frame |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Vertical, Right Angle |
| Number of Positions or Pins (Grid) [custom] | 2 x 5 |
| Number of Positions or Pins (Grid) [custom] | 10 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.145 " |
| Termination Post Length | 3.68 mm |
| Type | DIP |
| Type | 5.08 mm |
| Type | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.65 | |
| 10 | $ 8.94 | |||
| 25 | $ 8.08 | |||
| 50 | $ 7.50 | |||
| 100 | $ 6.97 | |||
| 250 | $ 6.34 | |||
| 500 | $ 5.92 | |||
| 1000 | $ 5.54 | |||
Description
General part information
10-2810 Series
10 (2 x 5) Pos DIP, 0.2" (5.08mm) Row Spacing Socket Gold Through Hole, Right Angle, Vertical
