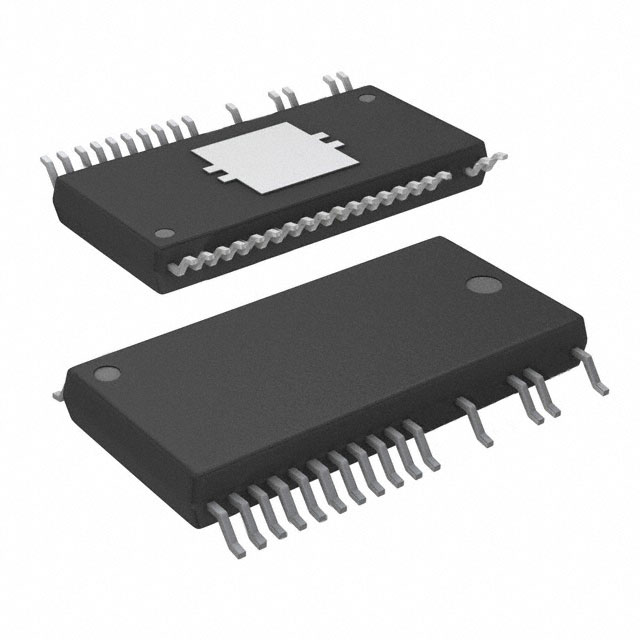

TB67B000FG,EL

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 34-P-HSSOP

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER 34-P-HSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TB67B000FG,EL

Applications	General Purpose
Current - Output	2 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	PWM
Motor Type - AC, DC	Brushless DC (BLDC)
Motor Type - Stepper	Multiphase
Mounting Type	Surface Mount
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-30 °C
Output Configuration	Half Bridge (3)
Package / Case	0.33 ", 8.4 mm, 34 Leads
Package / Case	42-SOP, Exposed Pad
Supplier Device Package	34-HSSOP
Technology	IGBT
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

Part	Current - Output	Technology	Applications	Motor Type - AC, DC	Function	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Package / Case	Supplier Device Package	Interface	Motor Type - Stepper	Package / Case
Toshiba Semiconductor and Storage TB67B000HG	2 A	IGBT	General Purpose	Brushless DC (BLDC)	Driver - Fully Integrated Control and Power Stage	450 V	50 V	13.5 V	16.5 V	Through Hole	-30 °C	115 °C	Half Bridge (3)	30-PowerDIP Module	30-HDIP	PWM
Toshiba Semiconductor and Storage TB67B000FG,EL	2 A	IGBT	General Purpose	Brushless DC (BLDC)	Driver - Fully Integrated Control and Power Stage			13.5 V	16.5 V	Surface Mount	-30 °C	115 °C	Half Bridge (3)	42-SOP Exposed Pad	34-HSSOP	PWM	Multiphase	0.33 " 8.4 mm 34 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.97
	Digi-Reel®	1	$ 8.97
	Tape & Reel (TR)	1000	$ 3.88

General part information

Multiphase Motor Driver IGBT PWM 34-HSSOP

Technical documentation and resources

No documents available
