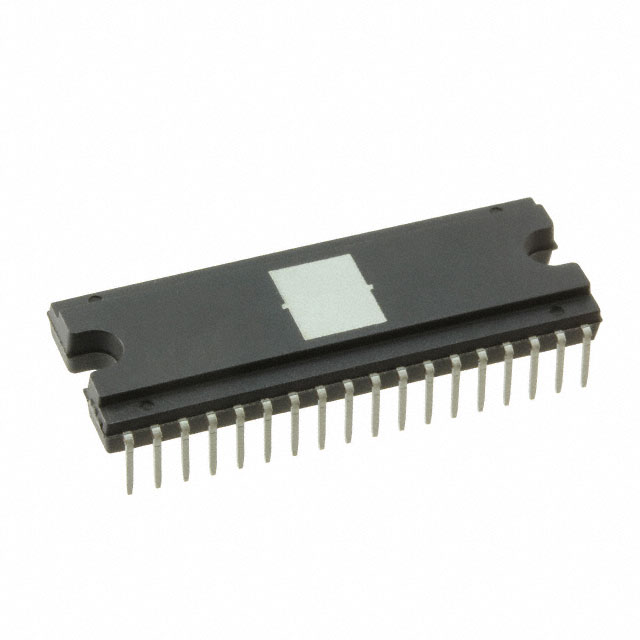

TB67B000HG

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRVR 13.5V-16.5V 30HDIP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRVR 13.5V-16.5V 30HDIP

Technical Specifications

Parameters and characteristics for this part

Specification	TB67B000HG

Applications	General Purpose
Current - Output	2 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	PWM
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Through Hole
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-30 °C
Output Configuration	Half Bridge (3)
Package / Case	30-PowerDIP Module
Supplier Device Package	30-HDIP
Technology	IGBT
Voltage - Load [Max]	450 V
Voltage - Load [Min]	50 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

Part	Current - Output	Technology	Applications	Motor Type - AC, DC	Function	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Package / Case	Supplier Device Package	Interface	Motor Type - Stepper	Package / Case
Toshiba Semiconductor and Storage TB67B000HG	2 A	IGBT	General Purpose	Brushless DC (BLDC)	Driver - Fully Integrated Control and Power Stage	450 V	50 V	13.5 V	16.5 V	Through Hole	-30 °C	115 °C	Half Bridge (3)	30-PowerDIP Module	30-HDIP	PWM
Toshiba Semiconductor and Storage TB67B000FG,EL	2 A	IGBT	General Purpose	Brushless DC (BLDC)	Driver - Fully Integrated Control and Power Stage			13.5 V	16.5 V	Surface Mount	-30 °C	115 °C	Half Bridge (3)	42-SOP Exposed Pad	34-HSSOP	PWM	Multiphase	0.33 " 8.4 mm 34 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver IGBT PWM 30-HDIP
