R113181020

Active

Radiall USA, Inc.

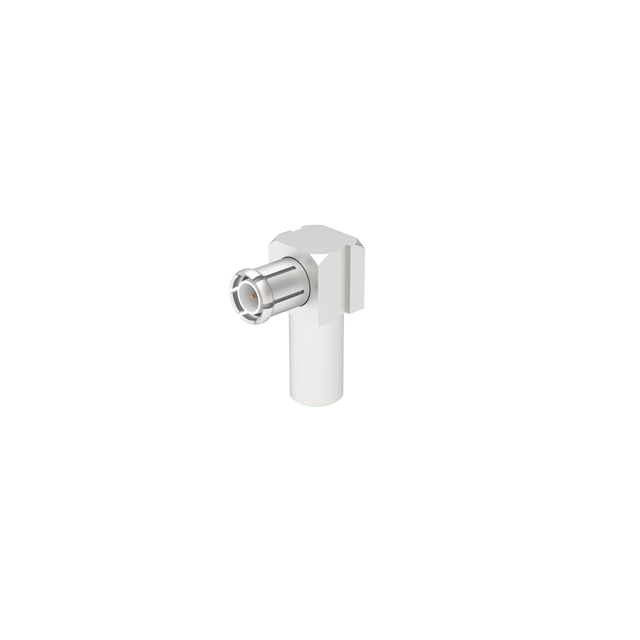

MCX / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R113181020

Body Finish	White Bronze
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

R11318 Series

Part	Dielectric Material	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Body Finish	Impedance	Contact Termination	Center Contact Material	Connector Type	Mating Cycles	Voltage Rating	Mounting Type	Frequency - Max [Max]	Body Material	Housing Color	Cable Group	Fastening Type	Number of Ports	Connector Style	Cable Group	Includes	Features
Radiall USA, Inc. R113182000W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Beryllium Copper	Male Pin Plug	500	335 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	188 316 RG-174	Snap-On	1	MCX
Radiall USA, Inc. R113182020W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Bronze	Silver	316 RG-188	Snap-On	1	MCX
Radiall USA, Inc. R113181000W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-178	Snap-On	1	MCX	196
Radiall USA, Inc. R113181000	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-178	Snap-On	1	MCX	196	1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Insulator
Radiall USA, Inc. R113180000	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-178 Double Braid	Snap-On	1	MCX
Radiall USA, Inc. R113182020	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Bronze	Silver	316 RG-188	Snap-On	1	MCX
Radiall USA, Inc. R113181020W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Silver	RG-178	Snap-On	1	MCX	196
Radiall USA, Inc. R113181097	Polytetrafluoroethylene (PTFE)	Crimp	125 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Bronze	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Bronze	Silver	RG-178	Snap-On	1	MCX			Non-Magnetic
Radiall USA, Inc. R113183000W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Beryllium Copper	Male Pin Plug	500	335 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-316 Double Braid	Snap-On	1	MCX
Radiall USA, Inc. R113181020	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Silver	RG-178	Snap-On	1	MCX	196

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.60

Description

General part information

R11318 Series

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp

Documents

Technical documentation and resources

No documents available
