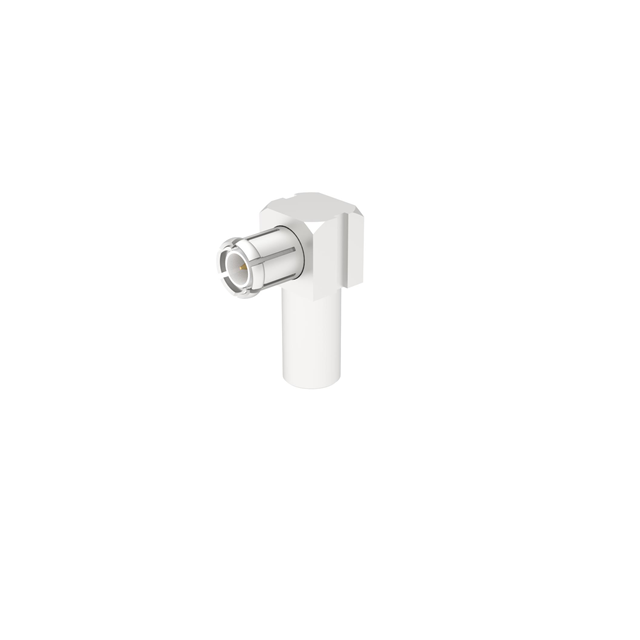

R113182020

Active

Radiall USA, Inc.

RF MCX CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R113182020

Body Finish	White Bronze
Body Material	Bronze
Cable Group	316, RG-188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

R11318 Series

Part	Dielectric Material	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Body Finish	Impedance	Contact Termination	Center Contact Material	Connector Type	Mating Cycles	Voltage Rating	Mounting Type	Frequency - Max [Max]	Body Material	Housing Color	Cable Group	Fastening Type	Number of Ports	Connector Style	Cable Group	Includes	Features
Radiall USA, Inc. R113182000W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Beryllium Copper	Male Pin Plug	500	335 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	188 316 RG-174	Snap-On	1	MCX
Radiall USA, Inc. R113182020W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Bronze	Silver	316 RG-188	Snap-On	1	MCX
Radiall USA, Inc. R113181000W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-178	Snap-On	1	MCX	196
Radiall USA, Inc. R113181000	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-178	Snap-On	1	MCX	196	1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Insulator
Radiall USA, Inc. R113180000	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-178 Double Braid	Snap-On	1	MCX
Radiall USA, Inc. R113182020	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Bronze	Silver	316 RG-188	Snap-On	1	MCX
Radiall USA, Inc. R113181020W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Silver	RG-178	Snap-On	1	MCX	196
Radiall USA, Inc. R113181097	Polytetrafluoroethylene (PTFE)	Crimp	125 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Bronze	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Bronze	Silver	RG-178	Snap-On	1	MCX			Non-Magnetic
Radiall USA, Inc. R113183000W	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	Gold	50 Ohms	Crimp	Beryllium Copper	Male Pin Plug	500	335 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Gold	RG-316 Double Braid	Snap-On	1	MCX
Radiall USA, Inc. R113181020	Polytetrafluoroethylene (PTFE)	Crimp	155 °C	-55 °C	Gold	White Bronze	50 Ohms	Crimp	Brass	Male Pin Plug	500	170 V	Free Hanging (In-Line) Right Angle	6000 MHz	Brass	Silver	RG-178	Snap-On	1	MCX	196

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.54

Description

General part information

R11318 Series

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
