BT1M-M39

Active

Panduit Corp

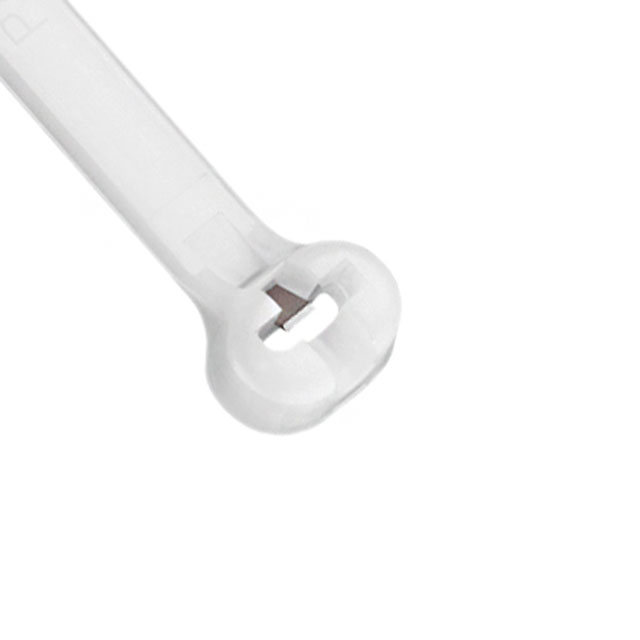

CABLE TIE, METAL BARB, 4.0L (102MM), MIN ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Material & Color Availability Chart

BT1M-M39

Active

Panduit Corp

CABLE TIE, METAL BARB, 4.0L (102MM), MIN ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Material & Color Availability Chart

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.12
		200	$ 0.11
		300	$ 0.11
		500	$ 0.11
		700	$ 0.11
		1000	$ 0.11
		2500	$ 0.10
		5000	$ 0.10
		10000	$ 0.10
Newark	Each	5000	$ 0.11

Description

General part information

BT1M Series

Standard, Locking Natural 0.90" (22.86mm) 0.095" (2.41mm) 18 lbs (8.16 kg)

Documents

Technical documentation and resources

Datasheet

Material & Color Availability Chart

Datasheet

Specification	BT1M-M39	BT1M Series

	-	-
Bundle Diameter [diameter]	0.9 in	0.9 in
Bundle Diameter [diameter]	22.86 mm	22.86 mm
Color	Natural	Natural, White, Black, Red
Features	Heat Stabilized	Heat Stabilized, Weather Resistant
Length - Actual [x]	4 in	4 in
Length - Actual [x]	101.6 mm	101.6 mm
Length - Actual [x]	0.333 '	0.333 '
Length - Approximate	4 in	4 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	18 lbs	18 lbs
Tensile Strength	8.16 kg	8.16 kg
Width [x]	0.095 in	0.095 in
Width [x]	2.41 mm	2.41 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

Part	Mounting Type	Material	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Length - Approximate	Width [x]	Width [x]	Features
Panduit Corp BT1M-C	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Natural	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-M10	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	White	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-C30	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Black	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Heat Stabilized
Panduit Corp BT1M-MP
Panduit Corp BT1M-M3	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard		0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-M39	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Natural	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Heat Stabilized
Panduit Corp BT1M-C0	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Black	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Weather Resistant
Panduit Corp BT1M-M30	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Black	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Heat Stabilized
Panduit Corp BT1M-M2	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Red	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-CGM
