BT1M-M2

Active

Panduit Corp

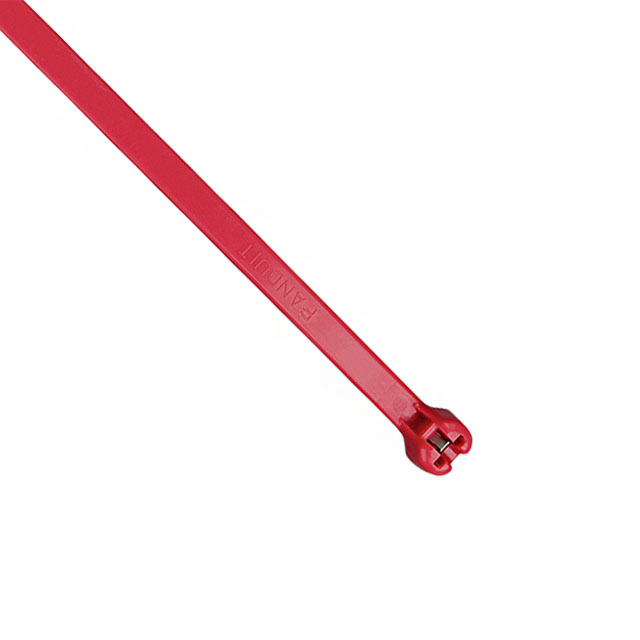

CBL TIE LOCKING RED 18LBS 4"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterial & Color Availability Chart Datasheet

BT1M-M2

Active

Panduit Corp

CBL TIE LOCKING RED 18LBS 4"

Deep-Dive with AI

DocumentsMaterial & Color Availability Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

Description

General part information

BT1M Series

Standard, Locking Red 0.90" (22.86mm) 0.095" (2.41mm) 18 lbs (8.16 kg)

Documents

Technical documentation and resources

Material & Color Availability Chart

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT1M-M2	BT1M Series

	-	-
Bundle Diameter [diameter]	0.9 in	0.9 in
Bundle Diameter [diameter]	22.86 mm	22.86 mm
Color	Red	Natural, White, Black, Red
Features	-	Heat Stabilized, Weather Resistant
Length - Actual [x]	4 in	4 in
Length - Actual [x]	101.6 mm	101.6 mm
Length - Actual [x]	0.333 '	0.333 '
Length - Approximate	4 in	4 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	18 lbs	18 lbs
Tensile Strength	8.16 kg	8.16 kg
Width [x]	0.095 in	0.095 in
Width [x]	2.41 mm	2.41 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

BT1M Series

CABLE TIE, DOME TOP® BARB TY, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 102 MM, 2.4 MM, 23 MM, 18 LB

Part	Mounting Type	Material	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Length - Approximate	Width [x]	Width [x]	Features
Panduit Corp BT1M-C	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Natural	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-M10	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	White	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-C30	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Black	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Heat Stabilized
Panduit Corp BT1M-MP
Panduit Corp BT1M-M3	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard		0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-M39	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Natural	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Heat Stabilized
Panduit Corp BT1M-C0	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Black	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Weather Resistant
Panduit Corp BT1M-M30	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Black	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm	Heat Stabilized
Panduit Corp BT1M-M2	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	18 lbs	8.16 kg	Locking, Standard	Red	0.9 in	22.86 mm	4 in	101.6 mm	0.333 '	4 in	0.095 in	2.41 mm
Panduit Corp BT1M-CGM
