SMI5-5-V-I38
ActiveCUI Inc.

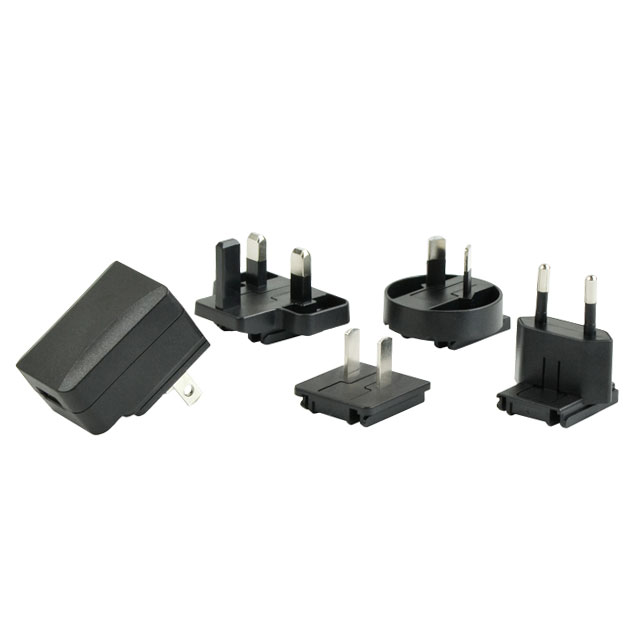

AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
SMI5-5-V-I38
ActiveCUI Inc.
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMI5-5-V-I38 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, RCM, PSE, UL, CSA, FCC, CCC, CB Scheme |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Included) |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 5 W |
| Region Utilized | International |
| Size / Dimension [x] | 1.85 in |
| Size / Dimension [x] | 47 mm |
| Size / Dimension [y] | 1.36 " |
| Size / Dimension [y] | 34.5 mm |
| Size / Dimension [z] | 1.04 in |
| Size / Dimension [z] | 26.4 mm |
| Standard Number | C22.2 No. 60950-1, 62368-1, 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
| Weight | 0.177 lb |
| Weight | 80.29 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.36 | |
| 5 | $ 10.44 | |||
| 10 | $ 10.07 | |||
| 25 | $ 9.60 | |||
| 50 | $ 9.26 | |||
| 100 | $ 8.06 | |||
| 120 | $ 8.85 | |||
| 250 | $ 7.87 | |||
| 360 | $ 8.36 | |||
| 500 | $ 7.74 | |||
| 600 | $ 8.14 | |||
Description
General part information
SMI5-5 Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
