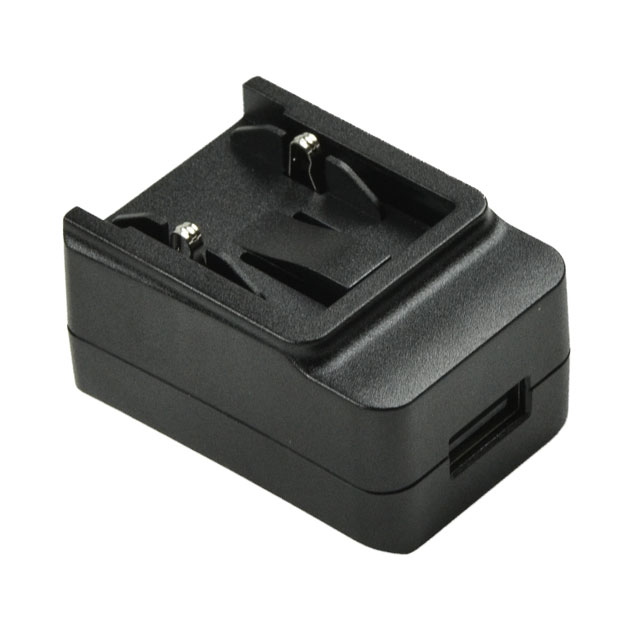

SMI5-5-K-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	SMI5-5-K-I38

Applications	ITE (Commercial)
Approval Agency	IEC, RCM, PSE, UL, CSA, FCC, CCC, CB Scheme
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Region Utilized	International
Size / Dimension [x]	1.85 in
Size / Dimension [x]	47 mm
Size / Dimension [y]	1.36 "
Size / Dimension [y]	34.5 mm
Size / Dimension [z]	1.04 in
Size / Dimension [z]	26.4 mm
Standard Number	C22.2 No. 60950-1, 62368-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.177 lb
Weight	80.29 g

Part	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Voltage - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	No Load Power Consumption	Region Utilized	Input Connector	Input Type	Applications	Current - Output (Max) [Max]	Form	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Approval Agency
CUI Inc. SMI5-5-K-I38	90 VAC	264 VAC	CoC Tier 2 Level VI	5 V	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	60950-1 62368-1 C22.2 No. 60950-1	100 mW	International	Multi-Blade	Multi-Blade (Sold Separately)	ITE (Commercial)	1 A	Wall Mount (Class II)	5 W	40 °C	0 °C	0.177 lb	80.29 g	CB Scheme CCC CSA FCC IEC PSE RCM UL
CUI Inc. SMI5-5-V-I38	90 VAC	264 VAC	CoC Tier 2 Level VI	5 V	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	60950-1 62368-1 C22.2 No. 60950-1	100 mW	International	Multi-Blade	Multi-Blade (Included)	ITE (Commercial)	1 A	Wall Mount (Class II)	5 W	40 °C	0 °C	0.177 lb	80.29 g	CB Scheme CCC CSA FCC IEC PSE RCM UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1200	$ 5.05

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input

Technical documentation and resources

No documents available
