SMH-106-02-T-D

Active

Samtec Inc.

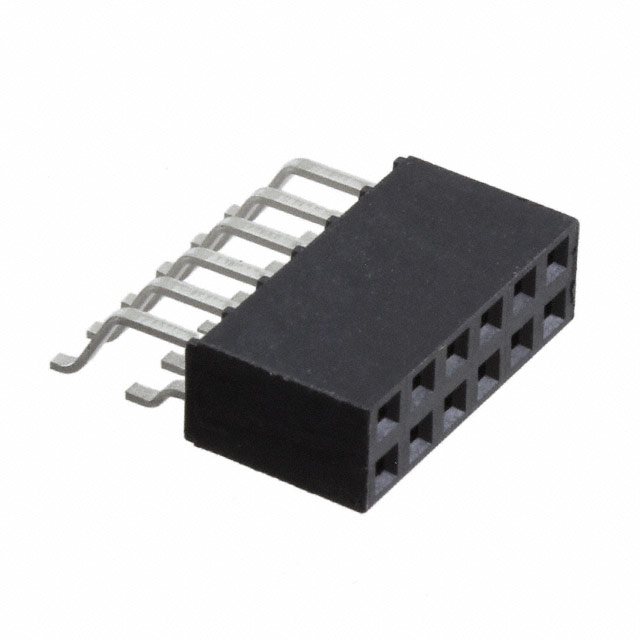

CONN RCPT 12POS 0.1 TIN SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMH Datasheet Datasheet +3

SMH-106-02-T-D

Active

Samtec Inc.

CONN RCPT 12POS 0.1 TIN SMD R/A

Deep-Dive with AI

DocumentsSMH Datasheet Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-106-02-T-D

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SMH-106 Series

Part	Contact Finish - Mating	Mounting Type	Contact Material	Number of Rows	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions	Material Flammability Rating	Contact Type	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Post
Samtec Inc. SMH-106-02-L-D	Gold	Surface Mount Right Angle	Phosphor Bronze	2	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	Push-Pull	All	10 çin	0.25 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	Receptacle	Solder	-55 °C	125 °C	Black	12	UL94 V-0	Forked	Square	Tin
Samtec Inc. SMH-106-02-S-D-TR	Gold	Surface Mount Right Angle	Phosphor Bronze	2	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	Push-Pull	All	30 Áin	0.76 Ám	2.54 mm	0.1 in	0.1 in	2.54 mm	Receptacle	Solder	-55 °C	125 °C	Black	12	UL94 V-0	Forked	Square	Tin
Samtec Inc. SMH-106-02-L-D-05	Gold	Surface Mount Right Angle	Phosphor Bronze	2	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	Push-Pull	All	10 çin	0.25 çm	2.54 mm	0.1 in	0.1 in	2.54 mm	Receptacle	Solder	-55 °C	125 °C	Black	12	UL94 V-0	Forked	Square	Tin
Samtec Inc. SMH-106-02-T-D		Surface Mount Right Angle	Phosphor Bronze	2	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	Push-Pull	All			2.54 mm	0.1 in	0.1 in	2.54 mm	Receptacle	Solder	-55 °C	105 ░C	Black	12	UL94 V-0	Forked	Square	Tin
Samtec Inc. SMH-106-02-G-D	Gold	Surface Mount Right Angle	Phosphor Bronze	2	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	Push-Pull	All	20 µin	0.51 µm	2.54 mm	0.1 in	0.1 in	2.54 mm	Receptacle	Solder	-55 °C	125 °C	Black	12	UL94 V-0	Forked	Square	Gold	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.03
		50	$ 1.66
		100	$ 1.41
		500	$ 1.25
		1000	$ 1.16

Description

General part information

SMH-106 Series

12 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Tin

Documents

Technical documentation and resources

SMH Datasheet

Datasheet

.100" Horizontal Surface Mount Socket Strip

TSW Series Other Related Documents 03

SMH (Single Row) SMT Footprint

Datasheet
