SMH-106-02-G-D
ActiveSamtec Inc.

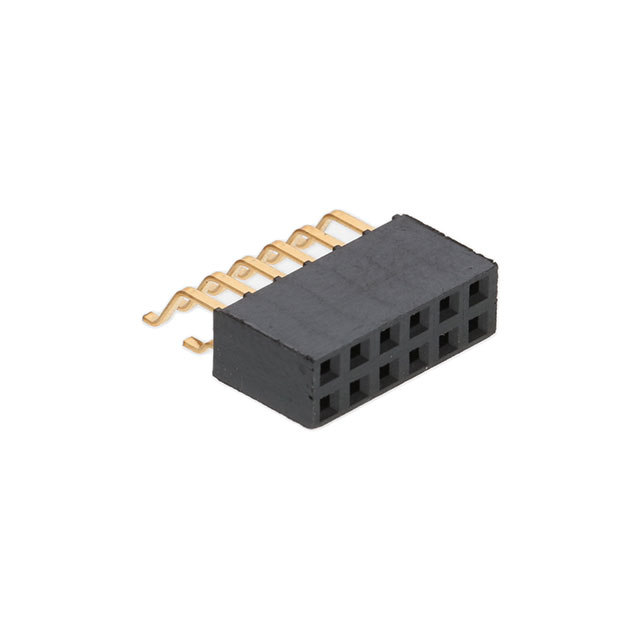

CONN SOCKET STRIP SKT 12 POS 2.54MM SOLDER RA SIDE ENTRY SMD TUBE
Deep-Dive with AI
Search across all available documentation for this part.
SMH-106-02-G-D
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 12 POS 2.54MM SOLDER RA SIDE ENTRY SMD TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMH-106-02-G-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.195 in |
| Insulation Height | 4.95 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SMH-106 Series
12 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
