626-009-262-535

Active

EDAC Inc.

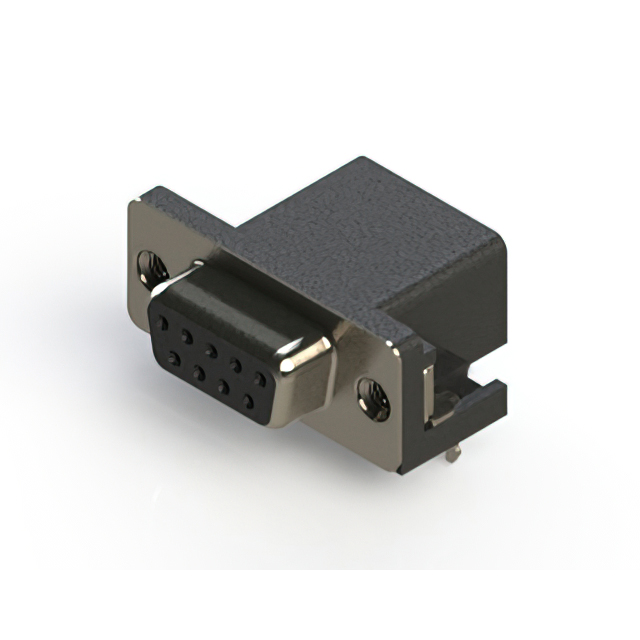

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

626-009-262-535

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	626-009-262-535

Backset Spacing	0.584 in
Backset Spacing	14.84 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

626-009 Series

Part	Dielectric Material	Number of Rows	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Current Rating (Amps)	Contact Type	Flange Feature	Backset Spacing	Backset Spacing	Color	Connector Style	Number of Positions	Contact Finish	Contact Material	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Features	Contact Finish Thickness
EDAC Inc. 626-009-362-535	Polyester Thermoplastic	2	Receptacle Female Sockets	15 µin	0.38 µm	-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Housing/Shell (M3)	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Board Lock Mounting Brackets Shielded
EDAC Inc. 626-009-262-510	Polyester Thermoplastic	2	Receptacle Female Sockets			-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	4-40	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Mounting Brackets Shielded	Flash
EDAC Inc. 626-009-262-513	Polyester Thermoplastic	2	Receptacle Female Sockets			-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Female Screwlock (4-40) Mating Side	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Mounting Brackets Shielded	Flash
EDAC Inc. 626-009-262-531	Polyester Thermoplastic	2	Receptacle Female Sockets			-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Housing/Shell (Unthreaded)	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Board Lock Mounting Brackets Shielded	Flash
EDAC Inc. 626-009-662-535	Polyester Thermoplastic	2	Receptacle Female Sockets	30 Áin	0.76 Ám	-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Housing/Shell (M3)	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Board Lock Mounting Brackets Shielded
EDAC Inc. 626-009-362-033	Polyester Thermoplastic	2	Receptacle Female Sockets	15 µin	0.38 µm	-55 °C	85 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Female Screwlock (4-40) Mating Side	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Board Lock Mounting Brackets Shielded
EDAC Inc. 626-009-262-535	Polyester Thermoplastic	2	Receptacle Female Sockets			-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Housing/Shell (M3)	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Board Lock Mounting Brackets Shielded	Flash
EDAC Inc. 626-009-662-532	Polyester Thermoplastic	2	Receptacle Female Sockets	30 Áin	0.76 Ám	-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Housing/Shell (4-40)	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Board Lock Mounting Brackets Shielded
EDAC Inc. 626-009-362-530	Polyester Thermoplastic	2	Receptacle Female Sockets	15 µin	0.38 µm	-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	4-40	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Board Lock Mounting Brackets Shielded
EDAC Inc. 626-009-362-511	Polyester Thermoplastic	2	Receptacle Female Sockets	15 µin	0.38 µm	-55 °C	125 °C	Board Edge Right Angle Through Hole	Solder	3 A	Signal	Housing/Shell (Unthreaded)	0.584 in	14.84 mm	Black	D-Sub	9	Gold	Copper Alloy	Nickel Plated Steel	DE E	1	UL94 V-0	Mounting Brackets Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 2.08
Newark	Each	25	$ 2.68
		100	$ 2.57
		250	$ 2.40
		500	$ 2.28
		1000	$ 2.17
		2500	$ 2.00

Description

General part information

626-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
