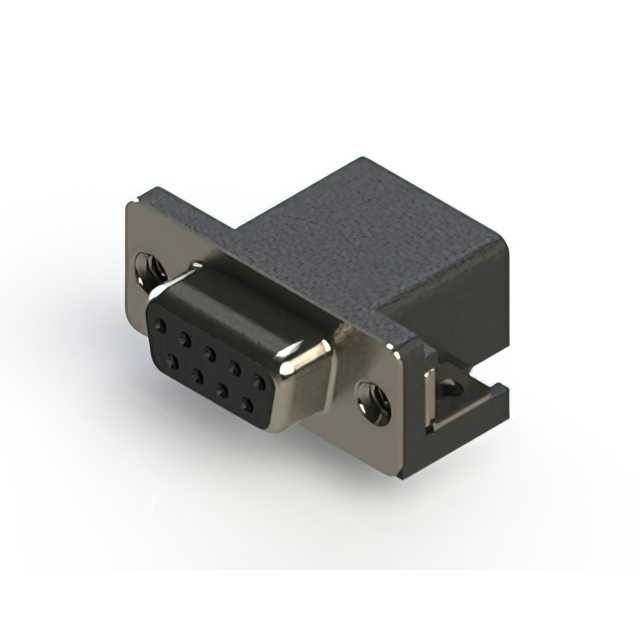

626-009-362-511
ActiveEDAC Inc.
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
626-009-362-511
ActiveEDAC Inc.
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 626-009-362-511 |
|---|---|
| Backset Spacing | 0.584 in |
| Backset Spacing | 14.84 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Mounting Brackets |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
626-009 Series
| Part | Dielectric Material | Number of Rows | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination | Current Rating (Amps) | Contact Type | Flange Feature | Backset Spacing | Backset Spacing | Color | Connector Style | Number of Positions | Contact Finish | Contact Material | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | 15 µin | 0.38 µm | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Housing/Shell (M3) | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Board Lock Mounting Brackets Shielded | |
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | 4-40 | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Mounting Brackets Shielded | Flash | ||
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Female Screwlock (4-40) Mating Side | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Mounting Brackets Shielded | Flash | ||
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Housing/Shell (Unthreaded) | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Board Lock Mounting Brackets Shielded | Flash | ||
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Housing/Shell (M3) | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Board Lock Mounting Brackets Shielded | |
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | 15 µin | 0.38 µm | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Female Screwlock (4-40) Mating Side | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Board Lock Mounting Brackets Shielded | |
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Housing/Shell (M3) | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Board Lock Mounting Brackets Shielded | Flash | ||
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Housing/Shell (4-40) | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Board Lock Mounting Brackets Shielded | |
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | 15 µin | 0.38 µm | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | 4-40 | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Board Lock Mounting Brackets Shielded | |
EDAC Inc. | Polyester Thermoplastic | 2 | Receptacle Female Sockets | 15 µin | 0.38 µm | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Solder | 3 A | Signal | Housing/Shell (Unthreaded) | 0.584 in | 14.84 mm | Black | D-Sub | 9 | Gold | Copper Alloy | Nickel Plated Steel | DE E | 1 | UL94 V-0 | Mounting Brackets Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
626-009 Series
9 Position D-Sub Receptacle, Female Sockets Connector
