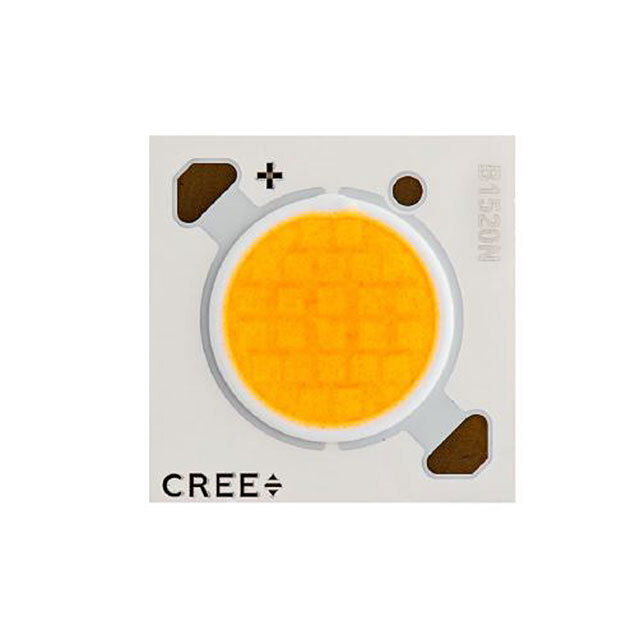

CXB1520-0000-000N0UP440H

Active

Cree LED

XLAMP CXA GEN2 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXB1520-0000-000N0UP440H

Active

Cree LED

XLAMP CXA GEN2 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB1520-0000-000N0UP440H

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.4 A
Current - Test	500 mA
Height [z]	1.55 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9 mm
Lumens/Watt @ Current - Test	123 lm/W
Luminous Flux @ Current/Temperature	2033 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33 V

CXB1520 Series

Part	Type	Height [z]	Current - Max [Max]	Lens Type	Temperature - Test	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Configuration	Current - Test	CCT (K)	Color	Viewing Angle	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]
Cree LED CXB1520-0000-000N0UN430Q	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	107 lm/W	90	33 V	Square	500 mA	3000 K	Warm White	115 °	1830 lm	1770 lm	1710 lm
Cree LED CXB1520-0000-000N0UP235G	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	115 lm/W	90	33 V	Square	500 mA	3500 K	Warm White	115 °	1965 lm	1898 lm	1830 lm
Cree LED CXB1520-0000-000N0HQ240H	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	132 lm/W	80	33 V	Square	500 mA	4000 K	Neutral White	115 °		2180 lm
Cree LED CXB1520-0000-000N0UN430G	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	107 lm/W	90	33 V	Square	500 mA	3000 K	Warm White	115 °	1830 lm	1770 lm	1710 lm
Cree LED CXB1520-0000-000N0UP440H	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	123 lm/W	90	33 V	Square	500 mA	4000 K	Neutral White	115 °		2033 lm
Cree LED CXB1520-0000-000N0HQ440G	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	142 lm/W	80	33 V	Square	500 mA	4000 K	Neutral White	115 °	2420 lm	2340 lm	2260 lm
Cree LED CXB1520-0000-000N0ZN235H	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	8.9 mm	100 lm/W	95	33 V	Square	500 mA	3500 K	Warm White	115 °	1710 lm	1650 lm	1590 lm
Cree LED CXB1520-0000-000N0UP440H	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	123 lm/W	90	33 V	Square	500 mA	4000 K	Neutral White	115 °		2033 lm
Cree LED CXB1520-0000-000N0HQ4L5A	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	8.9 mm	142 lm/W	80	33 V	Square	500 mA	4000 K	Neutral White	115 °	2420 lm	2340 lm	2260 lm
Cree LED CXB1520-0000-000N0BR240E	Chip On Board (COB)	1.55 mm	1.4 A	Flat	85 °C	9 mm	152 lm/W	70	33 V	Square	500 mA	4000 K	Neutral White	115 °	2600 lm	2510 lm	2420 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 19.82
		100	$ 19.82
Newark	Each	100	$ 18.78
		250	$ 16.33
		500	$ 15.86

Description

General part information

CXB1520 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Xlamp® CXB1520 White, Neutral Square
