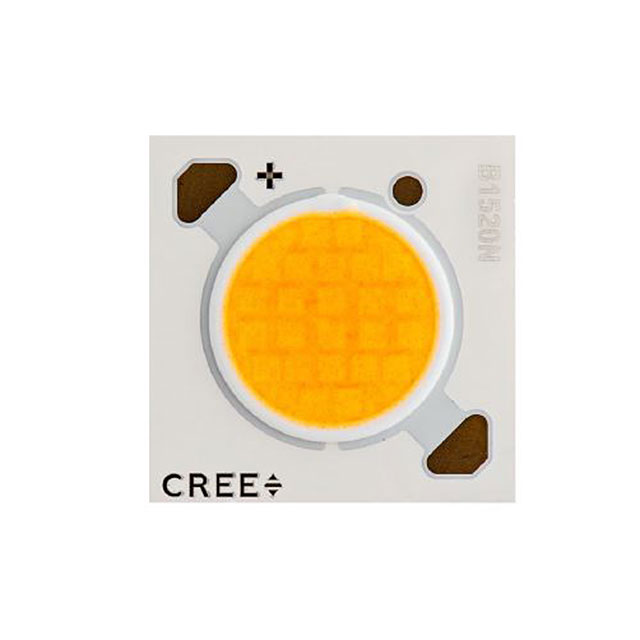

CXB1520-0000-000N0UN430G
ActiveCree LED
LED COB XLAMP WARM WHT SQ 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CXB1520-0000-000N0UN430G
ActiveCree LED
LED COB XLAMP WARM WHT SQ 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CXB1520-0000-000N0UN430G |
|---|---|
| CCT (K) | 3000 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 1.4 A |
| Current - Test | 500 mA |
| Height [z] | 1.55 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 9 mm |
| Lumens/Watt @ Current - Test | 107 lm/W |
| Luminous Flux @ Current/Temperature | 1770 lm |
| Luminous Flux @ Current/Temperature [Max] | 1830 lm |
| Luminous Flux @ Current/Temperature [Min] | 1710 lm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 33 V |
CXB1520 Series
| Part | Type | Height [z] | Current - Max [Max] | Lens Type | Temperature - Test | Light Emitting Surface (LES) [diameter] | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Voltage - Forward (Vf) (Typ) | Configuration | Current - Test | CCT (K) | Color | Viewing Angle | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 107 lm/W | 90 | 33 V | Square | 500 mA | 3000 K | Warm White | 115 ° | 1830 lm | 1770 lm | 1710 lm |
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 115 lm/W | 90 | 33 V | Square | 500 mA | 3500 K | Warm White | 115 ° | 1965 lm | 1898 lm | 1830 lm |
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 132 lm/W | 80 | 33 V | Square | 500 mA | 4000 K | Neutral White | 115 ° | 2180 lm | ||
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 107 lm/W | 90 | 33 V | Square | 500 mA | 3000 K | Warm White | 115 ° | 1830 lm | 1770 lm | 1710 lm |
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 123 lm/W | 90 | 33 V | Square | 500 mA | 4000 K | Neutral White | 115 ° | 2033 lm | ||
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 142 lm/W | 80 | 33 V | Square | 500 mA | 4000 K | Neutral White | 115 ° | 2420 lm | 2340 lm | 2260 lm |
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 8.9 mm | 100 lm/W | 95 | 33 V | Square | 500 mA | 3500 K | Warm White | 115 ° | 1710 lm | 1650 lm | 1590 lm |
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 123 lm/W | 90 | 33 V | Square | 500 mA | 4000 K | Neutral White | 115 ° | 2033 lm | ||
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 8.9 mm | 142 lm/W | 80 | 33 V | Square | 500 mA | 4000 K | Neutral White | 115 ° | 2420 lm | 2340 lm | 2260 lm |
Cree LED | Chip On Board (COB) | 1.55 mm | 1.4 A | Flat | 85 °C | 9 mm | 152 lm/W | 70 | 33 V | Square | 500 mA | 4000 K | Neutral White | 115 ° | 2600 lm | 2510 lm | 2420 lm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.48 | |
| 10 | $ 16.61 | |||
| 50 | $ 16.13 | |||
| 100 | $ 14.86 | |||
| 200 | $ 13.51 | |||
| 500 | $ 12.66 | |||
Description
General part information
CXB1520 Series
LED Lighting COBs Engines Modules Chip On Board (COB) Xlamp® CXB1520 White, Warm Square
