1245 1/2X18

Active

RF EMI SHIELDING TAPE 54' X 0.5"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1245 Series Shelf Life +1

1245 1/2X18

Active

RF EMI SHIELDING TAPE 54' X 0.5"

Deep-Dive with AI

DocumentsDatasheet 1245 Series Shelf Life +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.93
		10	$ 36.87
		25	$ 34.04
		100	$ 30.90

Description

General part information

1245 Series

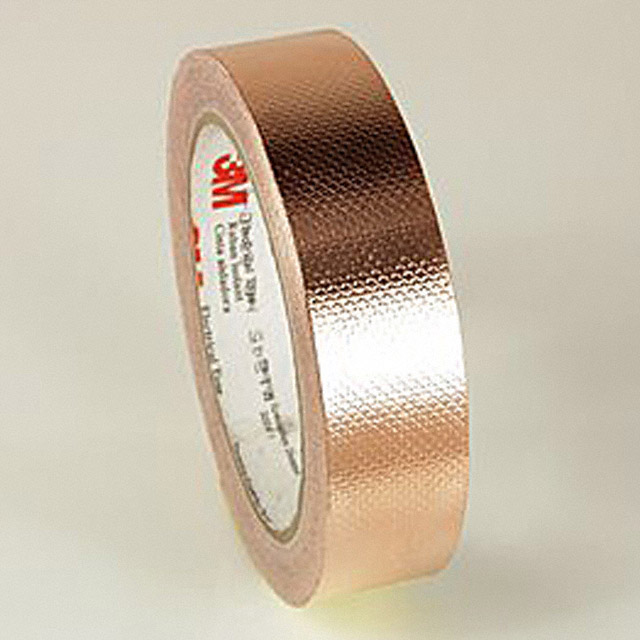

RF EMI Shielding Tape 1245 Embossed Copper Foil Non-Conductive, Single Sided 0.500" (12.70mm) X 54.000' (16.50m) X 0.004" (0.10mm)

Documents

Technical documentation and resources

Datasheet

1245 Series Shelf Life

Date Code Decipher

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1245 1/2X18	1245 Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive, Acrylic, Rubber Thermosetting, Conductive, Single Sided
Backing, Carrier	-	Copper Foil, Polyester Film
Color	-	Natural, Yellow
Length	16.5 m	16.5 - 254 m
Length	54 ft	10 - 108 ft
Length	-	18 - 36 yd
Length	-	36 "
Material	Embossed Copper Foil	Embossed Copper Foil, Aluminum Foil
Operating Temperature	-	-40 °C
Operating Temperature	-	130 °C
Shape	-	Roll
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	-	Copper Foil, Double Coated Film
Thickness	-	0.0035 "
Thickness	-	88.9 microns
Thickness	-	0.089 mm
Thickness - Adhesive	-	2.5 mils
Thickness - Adhesive	-	0.0025 "
Thickness - Adhesive	-	0.064 mm
Thickness - Backing, Carrier	-	0.025 - 0.102 mm
Thickness - Backing, Carrier	-	1 - 4 mils
Thickness - Backing, Carrier	-	0.001 - 0.004 in
Thickness - Overall	-	0.003 "
Thickness - Overall	-	0.08 mm
Thickness - Overall [custom]	0.004 "	0.004 "
Thickness - Overall [custom]	0.1 mm	0.1 mm
Type	Shielding Tape	Shielding Tape, Shielding Sheet
Usage	-	EMI Shielding, Bonding
Width	-	0.35 - 1.97 in
Width	-	9 - 50 mm
Width	-	0.25 - 7.7 in
Width	-	0.75 - 195 mm
Width	-	0.625 - 19.05 mm
Width	-	0.24 - 23 in
Width	-	6.1 - 584.2 mm

1245 Series

RF EMI SHIELDING TAPE 54'X0.38"

Part	Adhesive	Thickness - Overall [custom]	Thickness - Overall [custom]	Shelf Life	Length	Length	Width [y]	Width [y]	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Material	Width	Width	Backing, Carrier	Color	Tape Type	Length	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width	Thickness	Thickness	Thickness	Width [x]	Width [x]
3M 1245-3/8"X18YD	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft	0.38 in	9.65 mm	Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil
3M 1245 3/4X18	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil	0.75 in	19.1 mm
3M 1245 16M5X25MMMC9	Acrylic			60 Months	16.5 m	54 ft			Date of Manufacture					0.98 "	25 mm	Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in
3M 1245 16M5X50M	Rubber Thermosetting			60 Months	32.9 m	108 ft			Date of Manufacture					0.75 in	0.75 in	Polyester Film	Yellow	Double Coated Film	36 yd	Bonding	0.025 mm	1 mils	0.001 "	2.5 mils	0.0025 "	0.064 mm	19.05 mm	0.0035 "	88.9 microns	0.089 mm
3M 1245 16M5X9MMMC26	Acrylic			60 Months	16.5 m	54 ft	0.35 in	9 mm	Date of Manufacture							Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in
3M 1245 1/2X18	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil
3M 1245 X 1/4"	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil	0.25 in	6.35 mm
3M 1245-7.7"X10"	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	254 mm	10 in			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil	7.7 in	195 mm
3M 1245 16M5X19MMMC12	Acrylic			60 Months	16.5 m	54 ft			Date of Manufacture					0.75 in	0.75 in	Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in				19.05 mm
3M 1245 16M5X6MMMC36	Acrylic			60 Months	16.5 m	54 ft			Date of Manufacture							Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in								0.24 in	6.1 mm
