1245 16M5X50M

Active

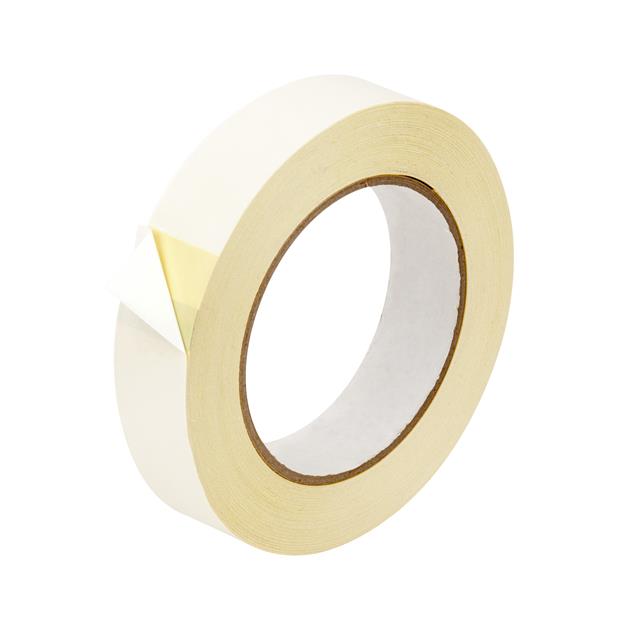

TAPE DBL COAT FILM YLW 3/4"X36YD

Deep-Dive with AI

Search across all available documentation for this part.

1245 16M5X50M

Active

TAPE DBL COAT FILM YLW 3/4"X36YD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 31.35

Description

General part information

1245 Series

Double Coated Film Tape Rubber Thermosetting Adhesive Yellow 0.75" (19.05mm) 3/4" X 108' (32.9m) 36 yds

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1245 16M5X50M	1245 Series

Adhesive	Rubber Thermosetting	Single Sided, Non-Conductive, Acrylic, Rubber Thermosetting, Conductive, Single Sided
Backing, Carrier	Polyester Film	Copper Foil, Polyester Film
Color	Yellow	Natural, Yellow
Length	36 yd	18 - 36 yd
Length	32.9 m	16.5 - 254 m
Length	108 ft	10 - 108 ft
Length	-	36 "
Material	-	Embossed Copper Foil, Aluminum Foil
Operating Temperature	-	-40 °C
Operating Temperature	-	130 °C
Shape	-	Roll
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	-	27 - 80 °F
Storage/Refrigeration Temperature	-	10 °C
Tape Type	Double Coated Film	Copper Foil, Double Coated Film
Thickness	0.0035 "	0.0035 "
Thickness	88.9 microns	88.9 microns
Thickness	0.089 mm	0.089 mm
Thickness - Adhesive	2.5 mils	2.5 mils
Thickness - Adhesive	0.0025 "	0.0025 "
Thickness - Adhesive	0.064 mm	0.064 mm
Thickness - Backing, Carrier	1 mils	1 - 4 mils
Thickness - Backing, Carrier	0.025 mm	0.025 - 0.102 mm
Thickness - Backing, Carrier	0.001 "	0.001 - 0.004 in
Thickness - Overall	-	0.004 "
Thickness - Overall	-	0.1 mm
Thickness - Overall	-	0.003 "
Thickness - Overall	-	0.08 mm
Type	-	Shielding Tape, Shielding Sheet
Usage	Bonding	EMI Shielding, Bonding
Width	0.75 in	0.25 - 7.7 in
Width	19.05 mm	0.625 - 19.05 mm
Width	0.75 in	0.75 - 195 mm
Width	-	0.35 - 1.97 in
Width	-	9 - 50 mm
Width	-	0.24 - 23 in
Width	-	6.1 - 584.2 mm

1245 Series

RF EMI SHIELDING TAPE 54'X0.38"

Part	Adhesive	Thickness - Overall [custom]	Thickness - Overall [custom]	Shelf Life	Length	Length	Width [y]	Width [y]	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Material	Width	Width	Backing, Carrier	Color	Tape Type	Length	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width	Thickness	Thickness	Thickness	Width [x]	Width [x]
3M 1245-3/8"X18YD	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft	0.38 in	9.65 mm	Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil
3M 1245 3/4X18	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil	0.75 in	19.1 mm
3M 1245 16M5X25MMMC9	Acrylic			60 Months	16.5 m	54 ft			Date of Manufacture					0.98 "	25 mm	Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in
3M 1245 16M5X50M	Rubber Thermosetting			60 Months	32.9 m	108 ft			Date of Manufacture					0.75 in	0.75 in	Polyester Film	Yellow	Double Coated Film	36 yd	Bonding	0.025 mm	1 mils	0.001 "	2.5 mils	0.0025 "	0.064 mm	19.05 mm	0.0035 "	88.9 microns	0.089 mm
3M 1245 16M5X9MMMC26	Acrylic			60 Months	16.5 m	54 ft	0.35 in	9 mm	Date of Manufacture							Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in
3M 1245 1/2X18	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil
3M 1245 X 1/4"	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	16.5 m	54 ft			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil	0.25 in	6.35 mm
3M 1245-7.7"X10"	Non-Conductive, Single Sided	0.004 "	0.1 mm	60 Months	254 mm	10 in			Date of Manufacture	27 °C, 80 °F	10 °C	Shielding Tape	Embossed Copper Foil	7.7 in	195 mm
3M 1245 16M5X19MMMC12	Acrylic			60 Months	16.5 m	54 ft			Date of Manufacture					0.75 in	0.75 in	Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in				19.05 mm
3M 1245 16M5X6MMMC36	Acrylic			60 Months	16.5 m	54 ft			Date of Manufacture							Copper Foil	Natural	Copper Foil	18 yd	EMI Shielding	0.041 mm	1.6 mils	0.0016 in								0.24 in	6.1 mm
