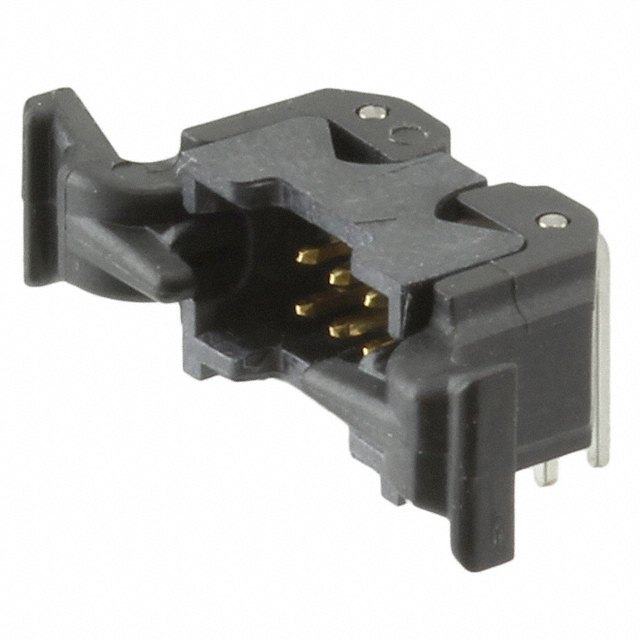

45206-520230

Active

3M (TC)

CONN, R/A HEADER, 6POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Series Product Spec 452 BrdMnt Header Series Drawing +1

45206-520230

Active

3M (TC)

CONN, R/A HEADER, 6POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Documents451, 452 Series Product Spec 452 BrdMnt Header Series Drawing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45206-520230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45206 Series

Part	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Rows	Number of Positions Loaded	Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Fastening Type	Features	Insulation Height	Insulation Height	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shrouding	Voltage Rating	Contact Material	Connector Type	Contact Length - Post	Contact Length - Post	Contact Type	Mated Stacking Heights	Contact Finish Thickness - Mating
3M (TC) 45206-520230	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	6	Gold	200 µin	5.08 µm	Tin	2	All	Board to Cable/Wire	Through Hole Right Angle	125 °C	-65 ░C	0.05 in	1.27 mm	Square	Latch Lock/Eject Hooks Short	Keying Slot	5.33 mm	0.21 in	Solder	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	125 VDC	Copper Alloy	Header	0.094 in	2.4 mm	Male Pin
3M (TC) 45206-620230	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	6	Gold	200 µin	5.08 µm	Tin	2	All	Board to Cable/Wire	Through Hole	125 °C	-65 ░C	0.05 in	1.27 mm	Square	Latch Lock/Eject Hooks Short	Keying Slot	5.65 mm	0.222 "	Solder	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	125 VDC	Copper Alloy	Header	0.094 in	2.4 mm	Male Pin	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45206-600200	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	6	Gold	100 µin	2.54 µm	Tin	2	All	Board to Cable/Wire	Through Hole	125 °C	-65 ░C	0.05 in	1.27 mm	Square	Push-Pull	Keying Slot	5.65 mm	0.222 "	Solder			UL94 V-0	Shrouded - 4 Wall	125 VDC	Copper Alloy	Header	0.094 in	2.4 mm	Male Pin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Flash
3M (TC) 45206-220230	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	6	Gold	200 µin	5.08 µm	Tin	2	All	Board to Cable/Wire	Surface Mount	125 °C	-65 ░C	0.05 in	1.27 mm	Square	Latch Lock/Eject Hooks Short	Keying Slot Pick and Place	5.65 mm	0.222 "	Solder	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	125 VDC	Copper Alloy	Header			Male Pin	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45206-200200	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	6	Gold	100 µin	2.54 µm	Tin	2	All	Board to Cable/Wire	Surface Mount	125 °C	-65 ░C	0.05 in	1.27 mm	Square	Push-Pull	Keying Slot Pick and Place	5.65 mm	0.222 "	Solder			UL94 V-0	Shrouded - 4 Wall	125 VDC	Copper Alloy	Header			Male Pin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Flash
3M (TC) 45206-620200	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	6	Gold	100 µin	2.54 µm	Tin	2	All	Board to Cable/Wire	Through Hole	125 °C	-65 ░C	0.05 in	1.27 mm	Square	Latch Lock/Eject Hooks Short	Keying Slot	5.65 mm	0.222 "	Solder			UL94 V-0	Shrouded - 4 Wall	125 VDC	Copper Alloy	Header	0.094 in	2.4 mm	Male Pin	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	204	$ 4.36
Newark	Each	1	$ 10.08
		10	$ 9.26
		25	$ 8.58
		50	$ 7.95
		100	$ 7.45
		250	$ 6.99
		500	$ 6.59

Description

General part information

45206 Series

Connector Header Through Hole, Right Angle 6 position 0.050" (1.27mm)

Documents

Technical documentation and resources

451, 452 Series Product Spec

Datasheet

452 BrdMnt Header Series Drawing

Datasheet
