45206-220230
Active3M (TC)

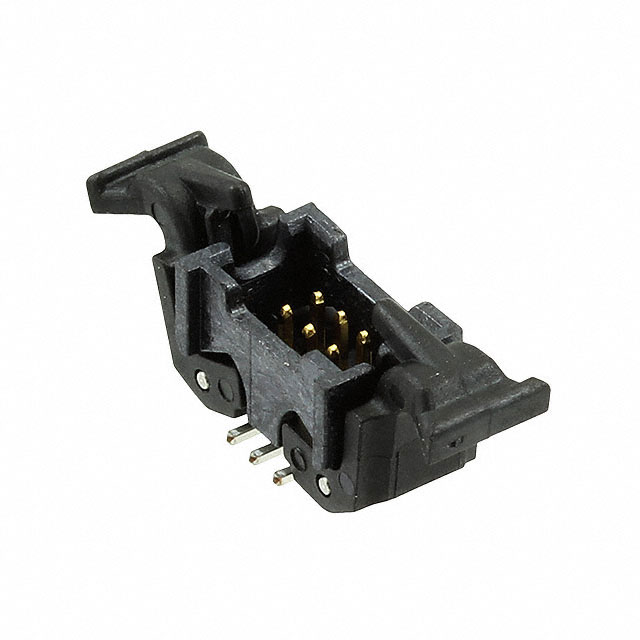

CONN, HEADER, 6POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
45206-220230
Active3M (TC)
CONN, HEADER, 6POS, 2ROW, 1.27MM, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 45206-220230 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Pick and Place, Keying Slot |
| Insulation Height | 5.65 mm |
| Insulation Height | 0.222 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VDC |
45206 Series
| Part | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Number of Rows | Number of Positions Loaded | Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Fastening Type | Features | Insulation Height | Insulation Height | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Shrouding | Voltage Rating | Contact Material | Connector Type | Contact Length - Post | Contact Length - Post | Contact Type | Mated Stacking Heights | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 6 | Gold | 200 µin | 5.08 µm | Tin | 2 | All | Board to Cable/Wire | Through Hole Right Angle | 125 °C | -65 ░C | 0.05 in | 1.27 mm | Square | Latch Lock/Eject Hooks Short | Keying Slot | 5.33 mm | 0.21 in | Solder | 30 Áin | 0.76 Ám | UL94 V-0 | Shrouded - 4 Wall | 125 VDC | Copper Alloy | Header | 0.094 in | 2.4 mm | Male Pin | ||
3M (TC) | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 6 | Gold | 200 µin | 5.08 µm | Tin | 2 | All | Board to Cable/Wire | Through Hole | 125 °C | -65 ░C | 0.05 in | 1.27 mm | Square | Latch Lock/Eject Hooks Short | Keying Slot | 5.65 mm | 0.222 " | Solder | 30 Áin | 0.76 Ám | UL94 V-0 | Shrouded - 4 Wall | 125 VDC | Copper Alloy | Header | 0.094 in | 2.4 mm | Male Pin | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | |
3M (TC) | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 6 | Gold | 100 µin | 2.54 µm | Tin | 2 | All | Board to Cable/Wire | Through Hole | 125 °C | -65 ░C | 0.05 in | 1.27 mm | Square | Push-Pull | Keying Slot | 5.65 mm | 0.222 " | Solder | UL94 V-0 | Shrouded - 4 Wall | 125 VDC | Copper Alloy | Header | 0.094 in | 2.4 mm | Male Pin | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | Flash | ||
3M (TC) | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 6 | Gold | 200 µin | 5.08 µm | Tin | 2 | All | Board to Cable/Wire | Surface Mount | 125 °C | -65 ░C | 0.05 in | 1.27 mm | Square | Latch Lock/Eject Hooks Short | Keying Slot Pick and Place | 5.65 mm | 0.222 " | Solder | 30 Áin | 0.76 Ám | UL94 V-0 | Shrouded - 4 Wall | 125 VDC | Copper Alloy | Header | Male Pin | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | |||
3M (TC) | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 6 | Gold | 100 µin | 2.54 µm | Tin | 2 | All | Board to Cable/Wire | Surface Mount | 125 °C | -65 ░C | 0.05 in | 1.27 mm | Square | Push-Pull | Keying Slot Pick and Place | 5.65 mm | 0.222 " | Solder | UL94 V-0 | Shrouded - 4 Wall | 125 VDC | Copper Alloy | Header | Male Pin | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | Flash | ||||
3M (TC) | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 6 | Gold | 100 µin | 2.54 µm | Tin | 2 | All | Board to Cable/Wire | Through Hole | 125 °C | -65 ░C | 0.05 in | 1.27 mm | Square | Latch Lock/Eject Hooks Short | Keying Slot | 5.65 mm | 0.222 " | Solder | UL94 V-0 | Shrouded - 4 Wall | 125 VDC | Copper Alloy | Header | 0.094 in | 2.4 mm | Male Pin | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | Flash |
